Tomei Technical Trax Advance 1.5-Way LSD | 2022+ Subaru BRZ/Toyota GR86 and 2013-2021 Subaru BRZ/Scion FR-S/Toyota 86 (TC101B-TYTG1)

Technical Trax Advance 1.5-Way LSD Pro Kit for 2022+ Subaru BRZ/Toyota GR86 and 2013-2021 Subaru BRZ/Scion FR-S/Toyota 86 by Tomei

The T-Trax Advance LSD has several advantages over similar products from other manufacturers. It features optimized cam angles, spring discs, larger surface area clutch disc and a higher intial torque setting. These all translate to improved corner entry, more precise driving, better corner exit traction as well as quicker response through successive corners. T-Trax Advance offers superior performance in every way.

Features

• Ring Gear Bolt PCD: 160mm

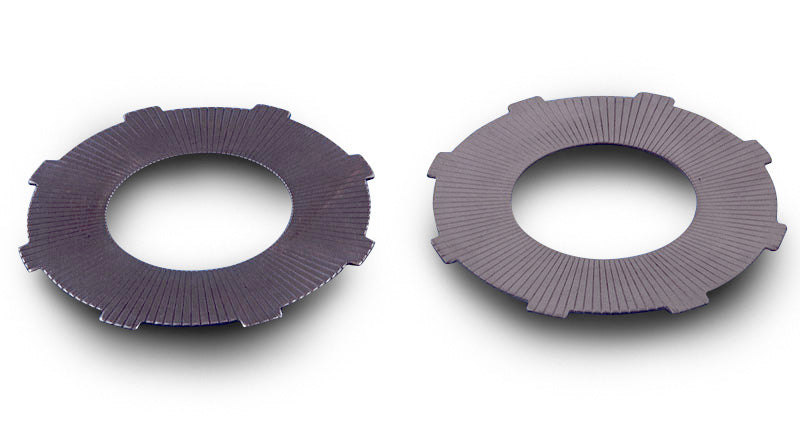

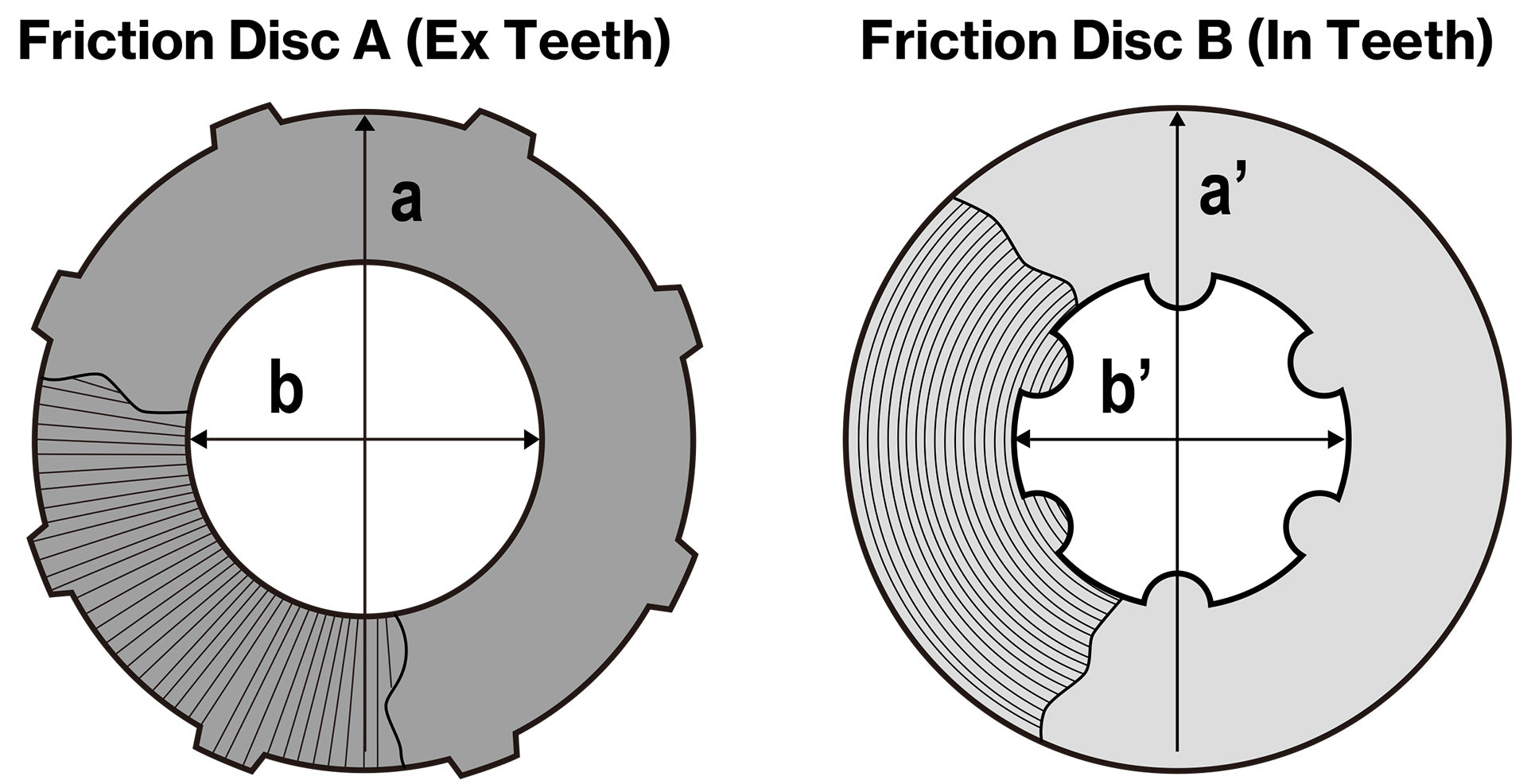

• Disk Diameter: 106mm
• Disk Interior Teeth: 8
• Disk Exterior Teeth: 8
• Thickness: 1.7mm
• Number of Spring Disks: -
• Size & Number of Ring Gear Bolts: M11 (10)
• Number of Spline: 30T
• Inner Flange Diameter: 35.0mm
• Initial Torque(kg/m): 16.5-18.5
• Pressure Ring Cam Angle: 60° x 45°

Benefits

• Utilizes original factory flange
• Quiter and improved efficiency

Applications

• 2013-2016 Scion FR-S
• 2013+ Subaru BRZ
• 2016+ Toyota FT86 / GR86

What's In The Box?

• 1 - LSD Pro Kit

References

• Installation Instructions
