JOINT PIPE EXPREME GR86/86/FR-S/BRZ FA24/FA20 Ver.2
JOINT PIPE EXPREME GR86/86/FR-S/BRZ FA24/FA20 Ver.2
Couldn't load pickup availability
Equal Length for Total Balance
Unequal Length for Boxer Sound
| APPLICATION | FA24 | GR86 ZN8 / BRZ ZD8 |
| FA20 *1 | 86 ZN6 / FR-S ZN6 / BRZ ZC6 |
*1 FA20 models require the use of exhaust manifold ver.2 and joint pipe ver.2 together.
Significant Performance Gains
Tested with the 45mm Ver.2-Unequal and showed excellent performance across the entire RPM range.
FA24/FA20 Fully Compatible
The ver.2 manifold is designed to offer proper clearance for the oil pan and other components of the FA24 model, while also achieving a perfect fit with the FA20 model.
The FA24 can be used with just the exhaust manifold, but we recommend using it in combination with a more efficient joint pipe.

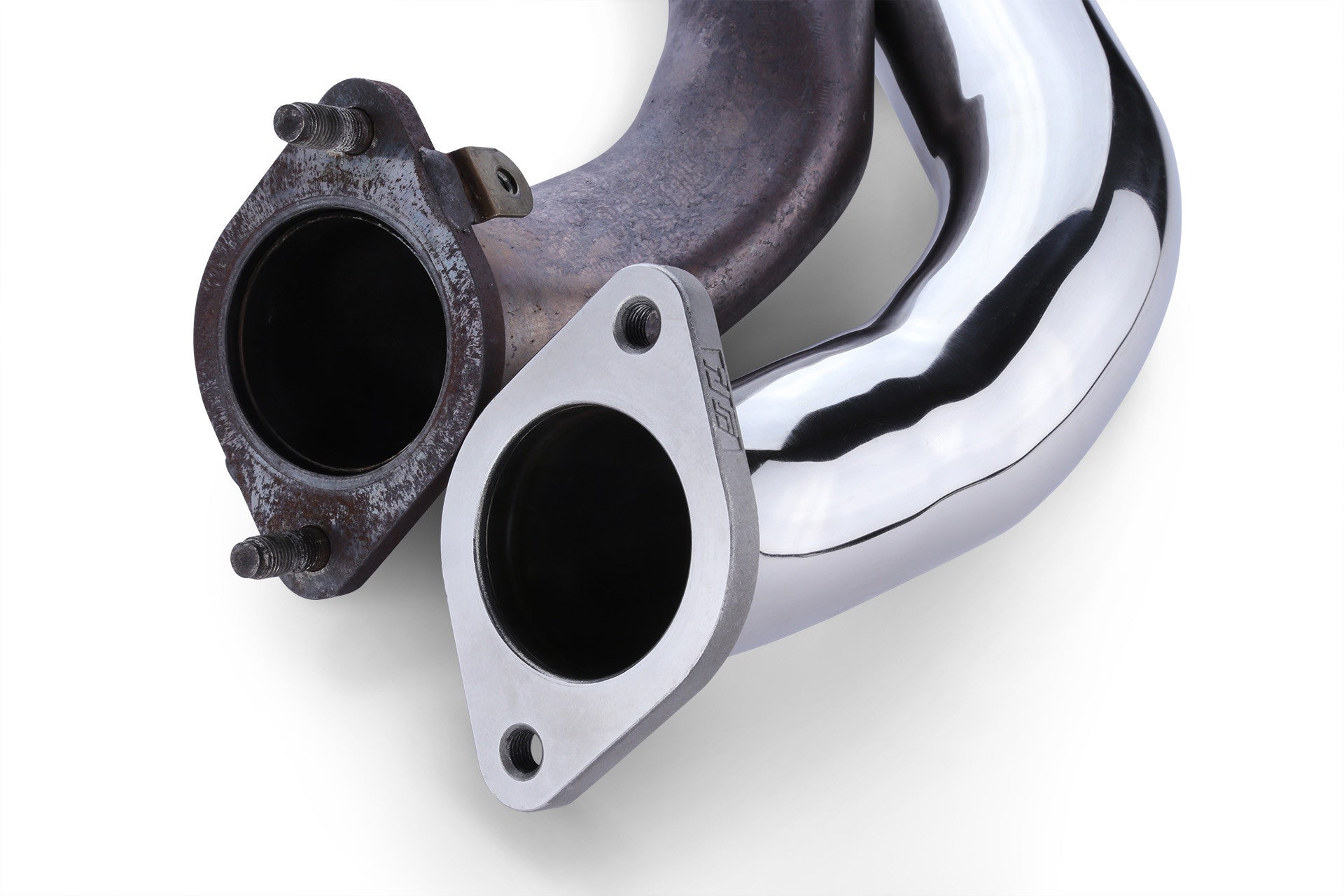

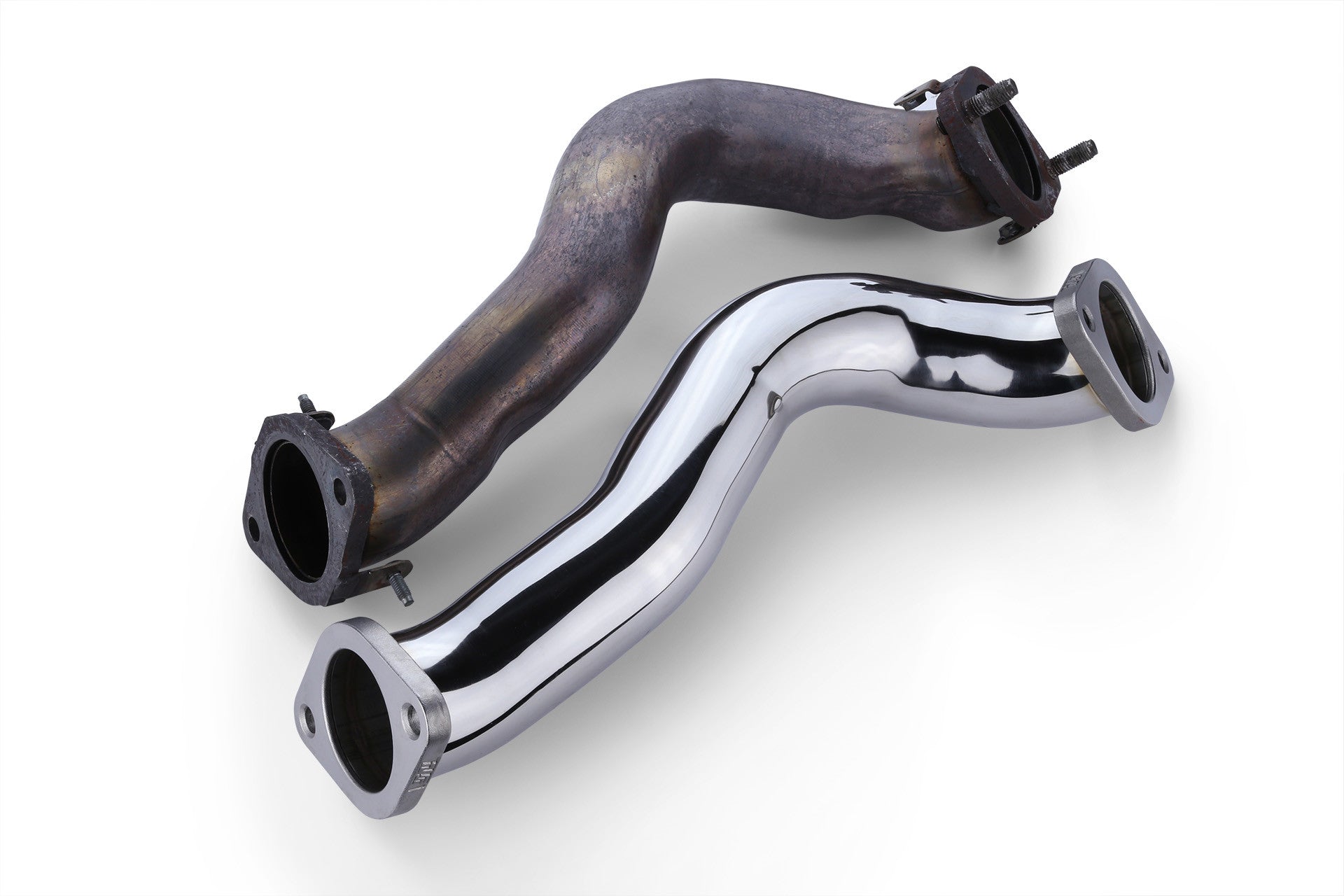

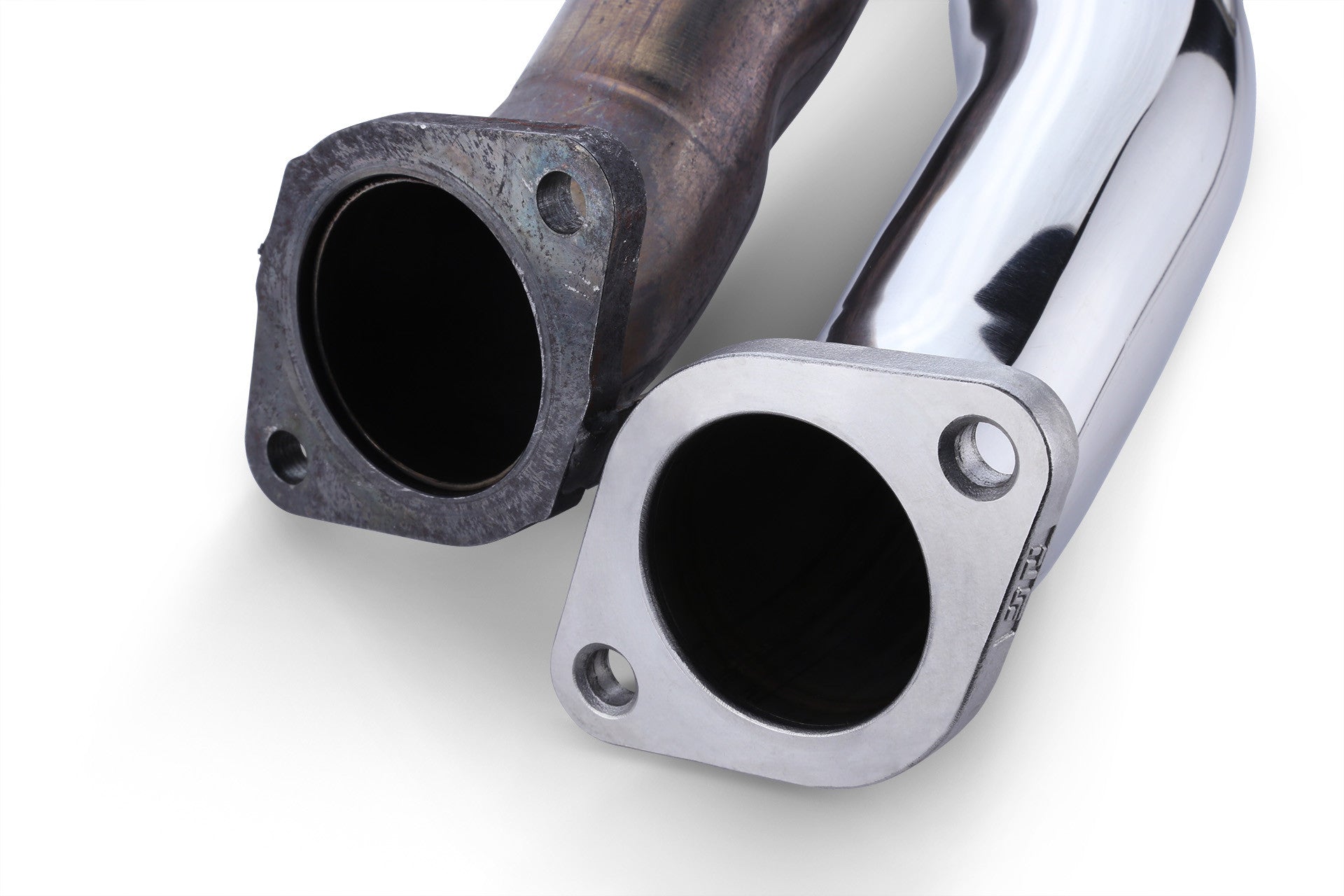

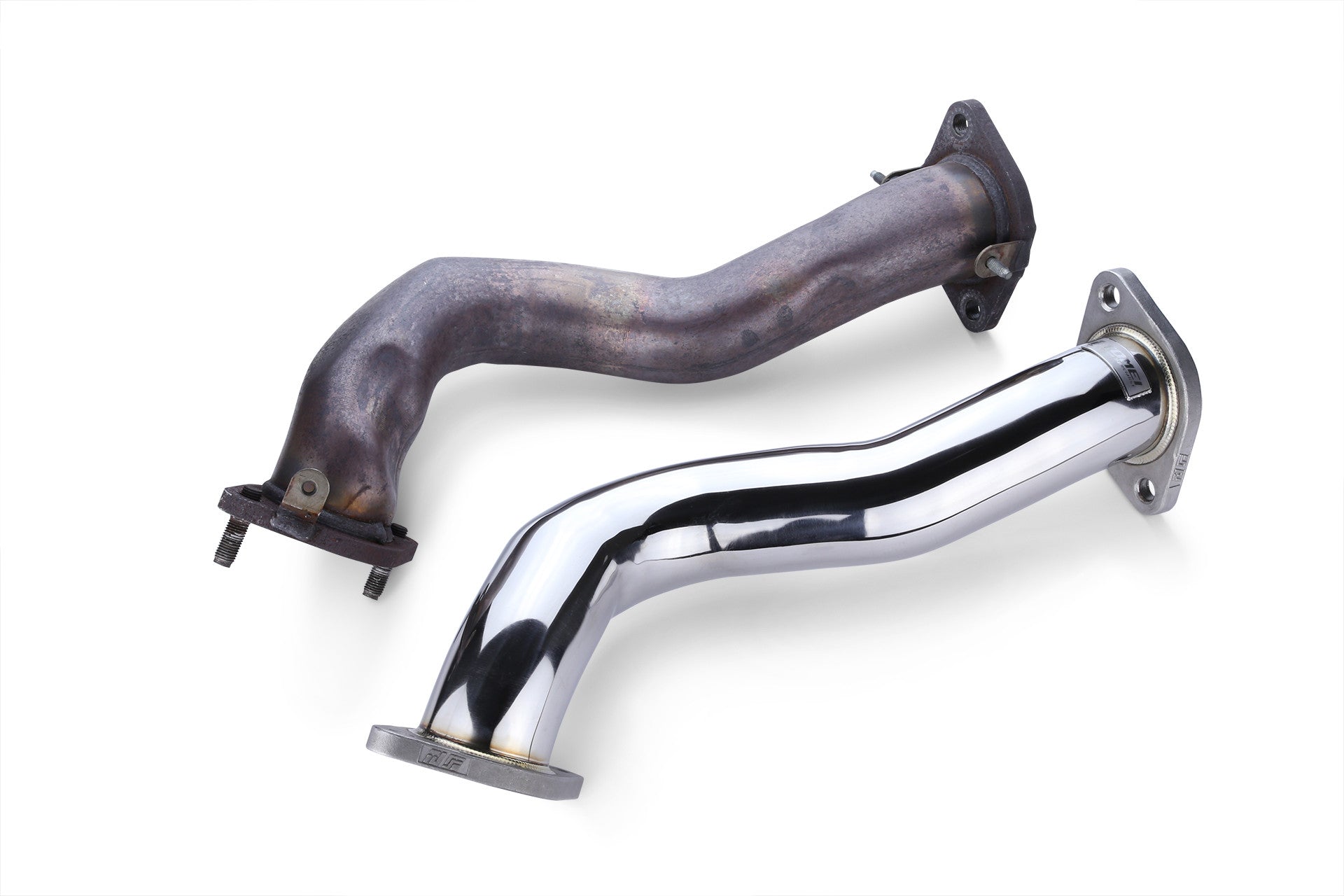

Stock Comparison
JOINT PIPE
Main Pipe Diameter
Port Effective Diameter
Weight

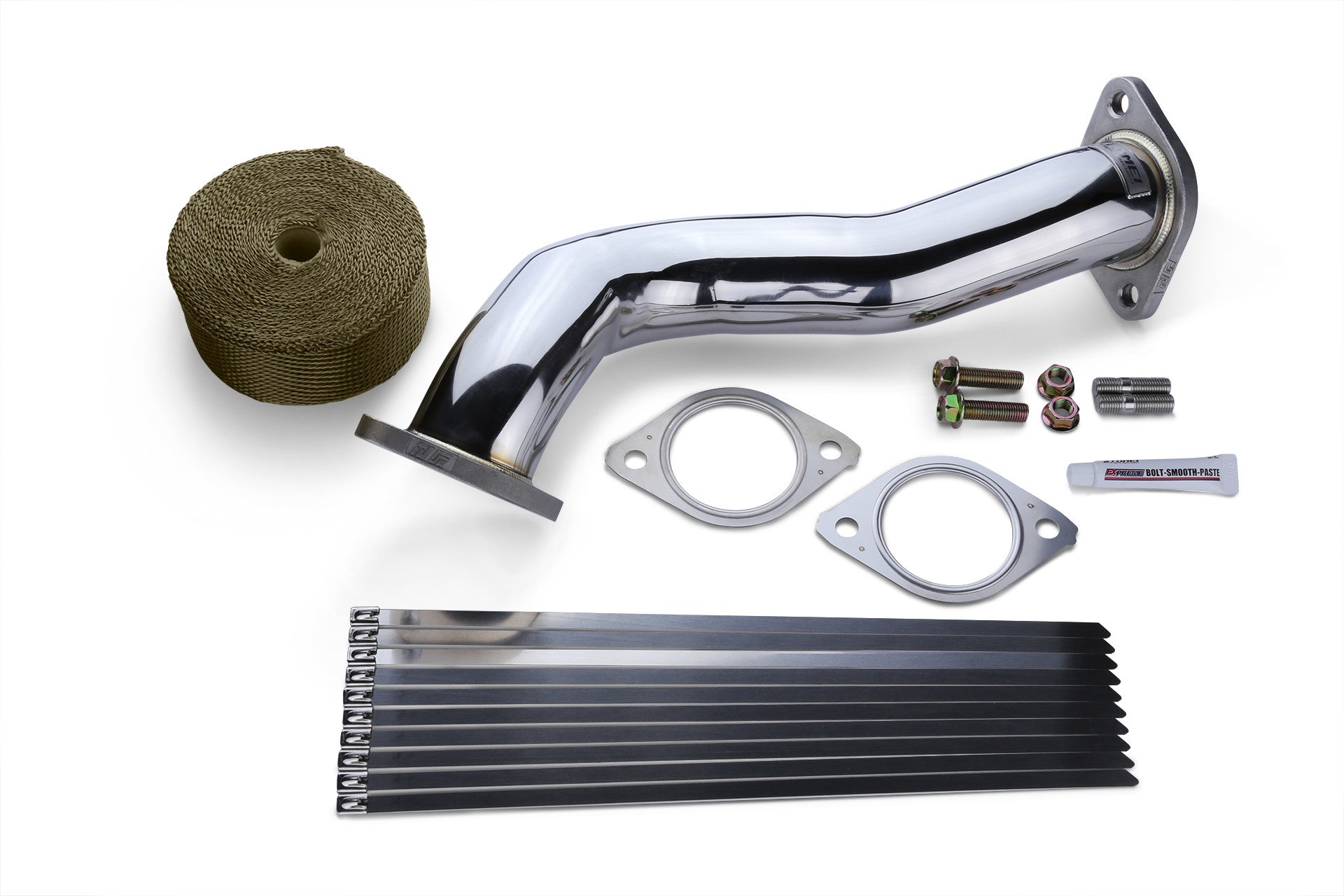

Titan Exhaust Bandage Included
Basalt fiber bandages are optimal for pursuing exhaust efficiency and preventing thermal damage.
■ Equal Length ■
■ Unequal Length ■
■ Equal Length ■
■ Unequal Length ■
FA24/FA20 EXHAUST MANIFOLD/JOINT PIPE APPLICATION LIST
| ENGINE | TYPE | PIPE DIA | PART No. | FA24 | FA20 | |
| 2021- | 2012- 2020 |
|||||
|
New FA24/ FA20 |
New UNEQUAL ver.2 |
Φ45.0 | TB6010-SB05A |
 |
〇 | △ *1 |
|
New EQUAL ver.2 |
TB6010-SB05B |
 |
〇 | △ *1 | ||
|
New JOINT PIPE ver.2 |
Φ60.5 | TB6060-SB05A |
 |
〇 | △ *1 | |
| FA20 | UNEQUAL | Φ42.7 | TB6010-SB03B |
 |
△ *2 | 〇 |
| EQUAL | TB6010-SB03A |
 |
〇 | |||
| JOINT PIPE | Φ60.5 | TB6060-SB03A |
 |
△ *3 | 〇 |
*1 TB6060-SB05A Installation can be possible by using it in combination with a joint pipe.
*2 TB6060-SB03A Installation can be possible by using it in combination with a joint pipe.
*3 TB6010-SB03A Installation can be possible by using it in combination with a Unequal EX-MANI.
