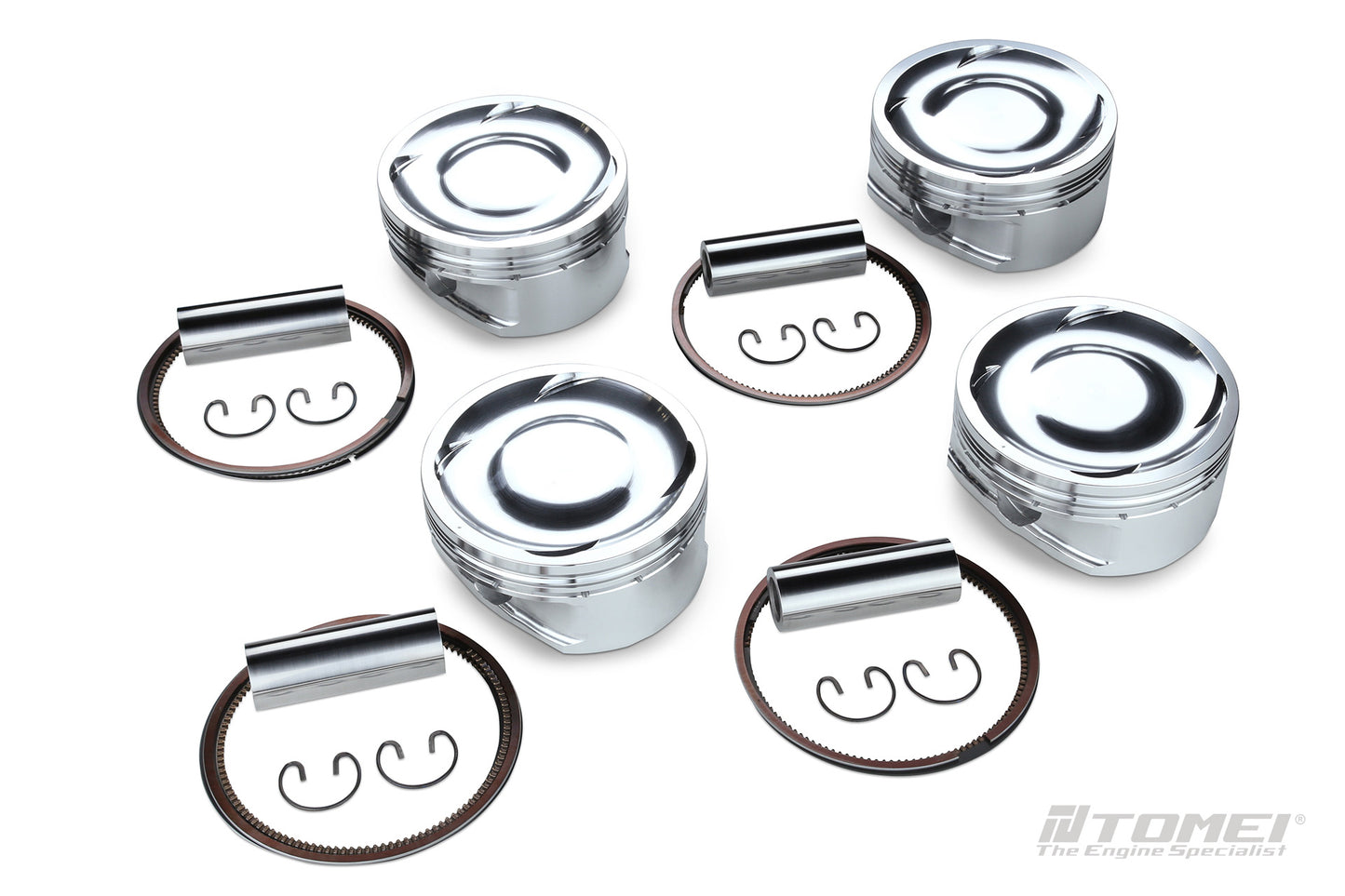

Tomei EJ25/EJ26 Forged Piston Set (Subaru WRX/STi) 1182997312

Tomei EJ25/EJ26 Forged Piston Set (Subaru WRX/STi) 1182997312

$1,200.00 USD
$1,200.00 USD
Sale Sold out
Shipping calculated at checkout.
  Lease to own   Pay as low as   $/week
SKU: TOM TA202A-SB02A

The ellipse barrel shape profile was chosen from the advanced analysis of the analysis distribution of piston temperatures, material properties and the coefficient thermal expansion rates. This allowed our design to use much tighter piston clearances for maximum power range. This greatly reduces blow by gases, friction loss and no noise. This maximizes power and longevity of the piston. This is the advantage of Tomei's Pistons.

  • LOW FRICTION / BEST CLEARANCE
  • PROFILE DEISGNED FOR OPTIMIZED COMBUSTION
  • DURABLE AT APPROX 74g!

BORE
DIAMETER
(Φ)

PIN
DIAMETER
(Φ)

PIN
LENGTH
(mm)

RECESS

COMPRESSION
HEIGHT (mm)

CROWN
VOLUME (cc)

PISTON
WEIGHT (g)

99.75

23.0

62

YES

30.7

19.5

380



PISTON PIN
WEIGHT (g)

GROSS
WEIGHT
（g）

TOP RING
BxT (mm)

SECOND RING
B x T (mm)

OIL RING
B x T (mm)

MATERIAL

STOCK
WEIGHT (g)

123

503

1.2 x 3.6

1.2 x 4.0

2.0 x 3.0

ALUMINUM

577
