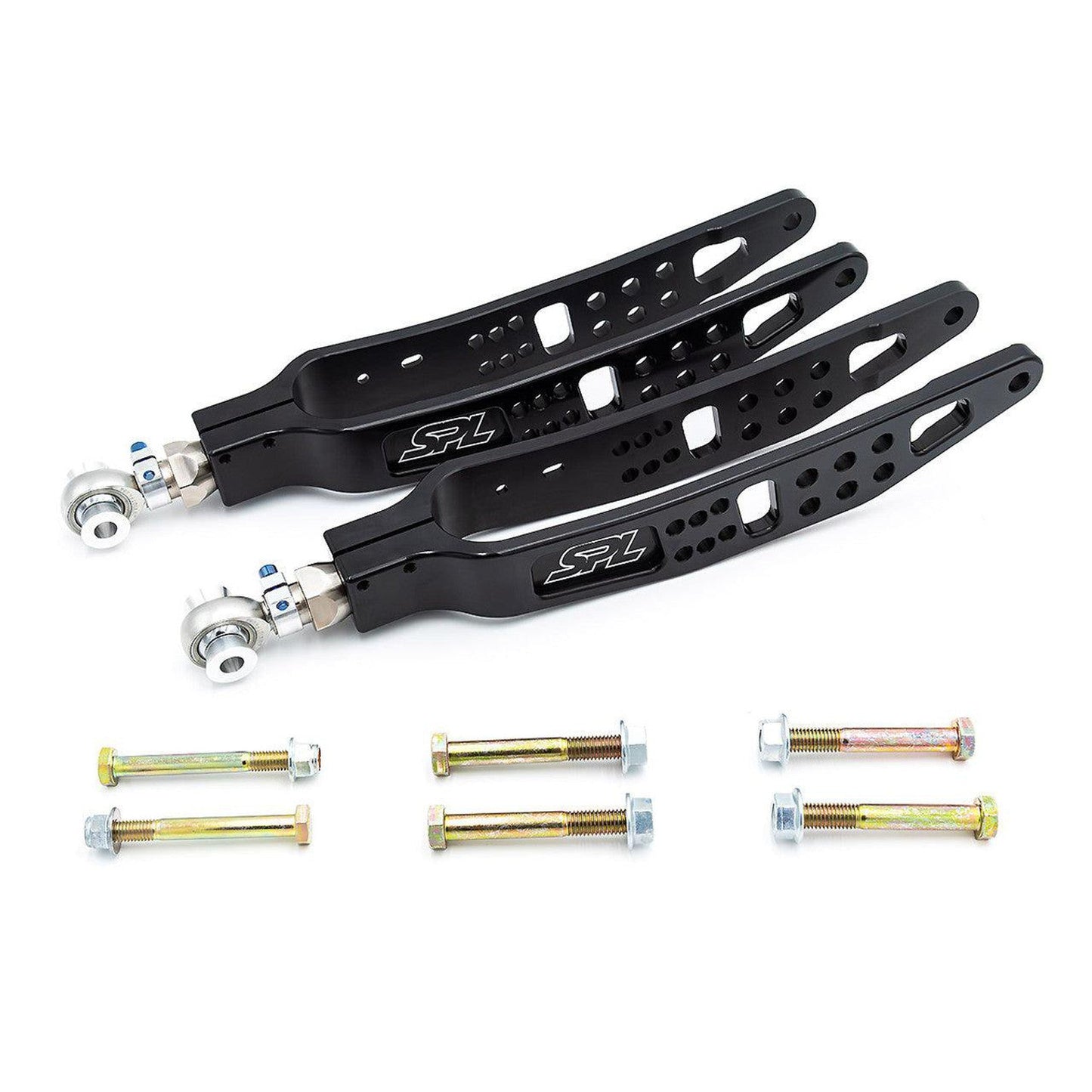

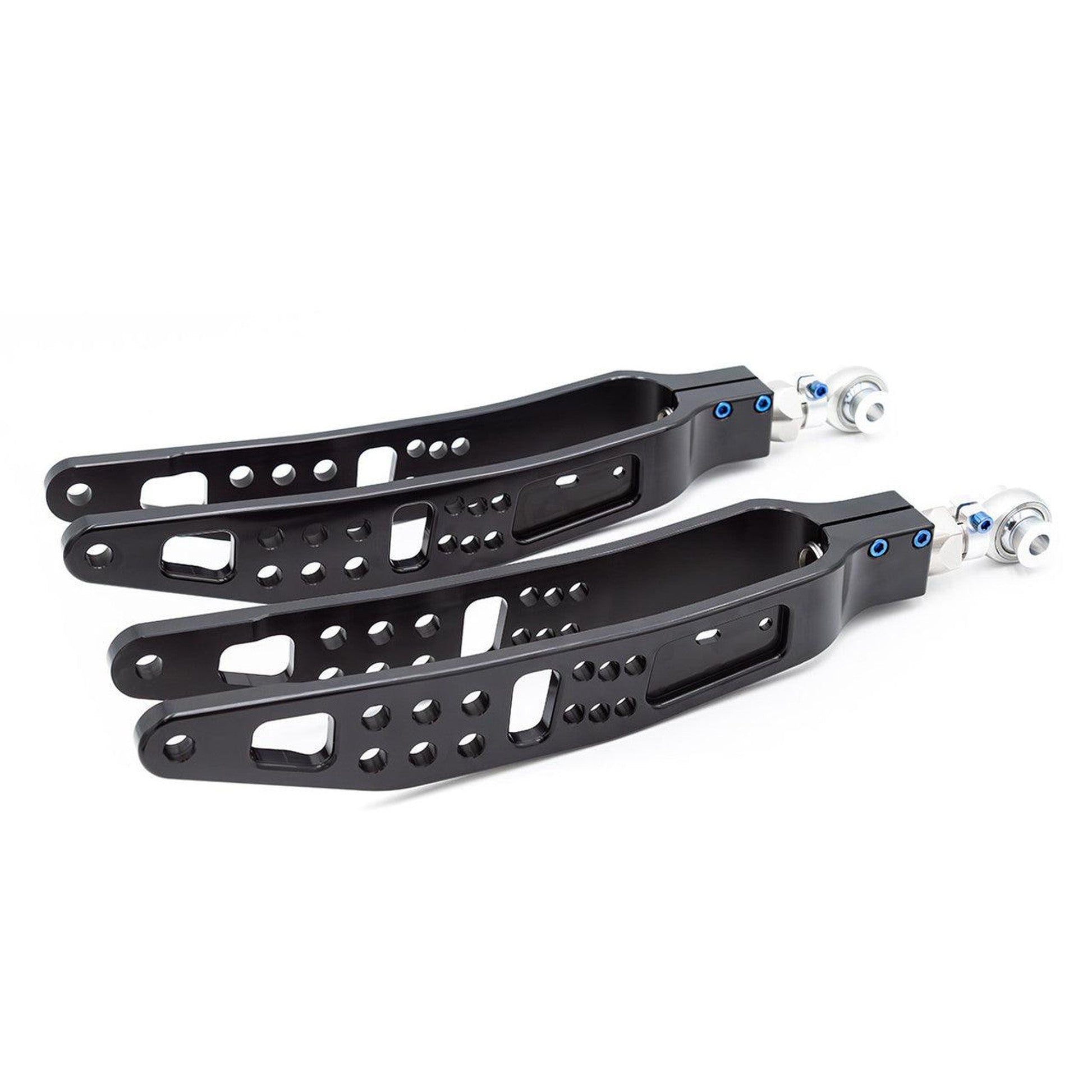

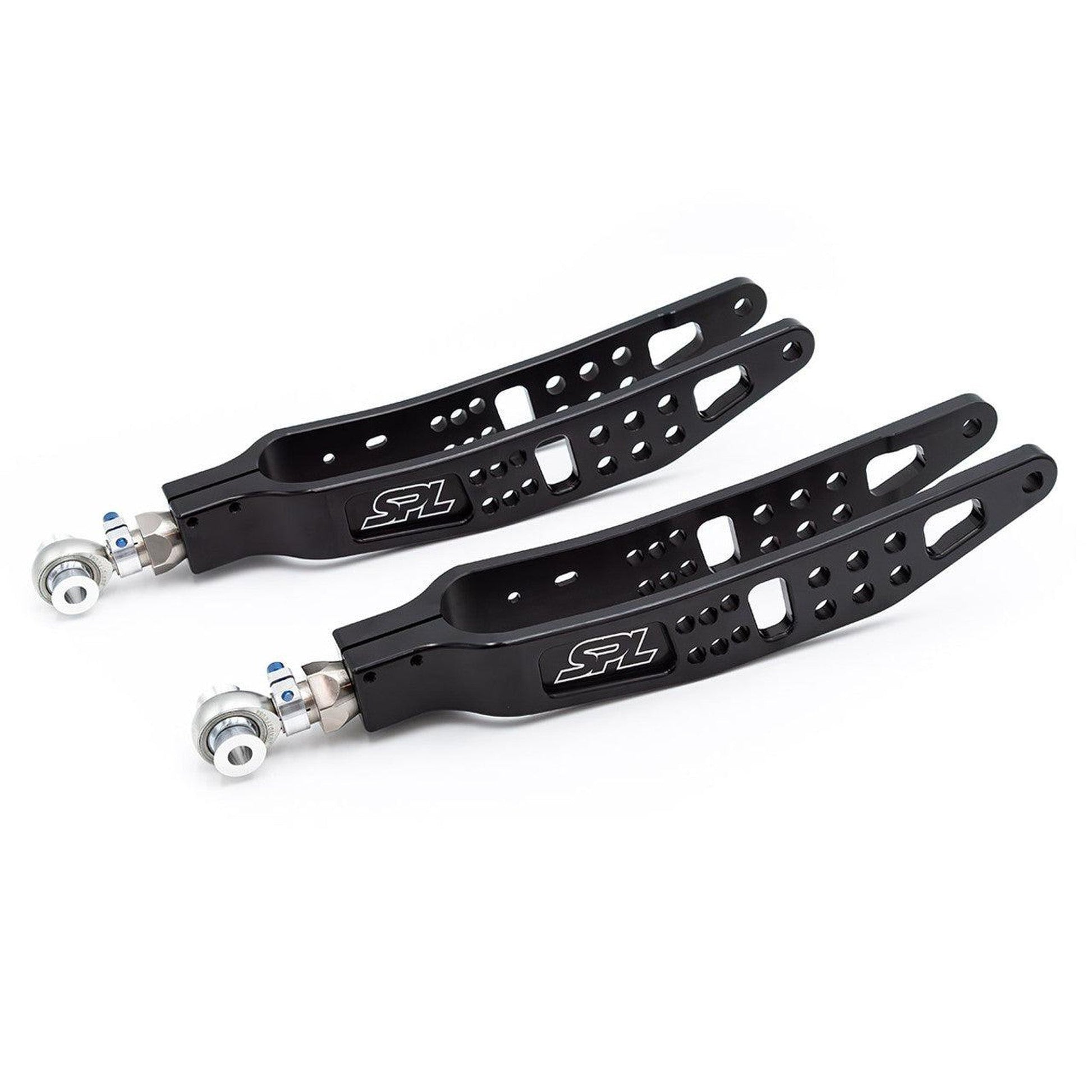

SPL Titanium Rear Lower Camber Arms Subaru WRX / STI 2008-2025 / Scion FR-S 2013-2016 / Subaru BRZ 2013-2025 | SPL RLL FRS

Fitment Information:

• Toyota 86 2013-2025
• Subaru BRZ 2013-2025
• Subaru WRX 2008-2025
• Subaru STI 2008-2021
• Subaru Forester 2009-2017

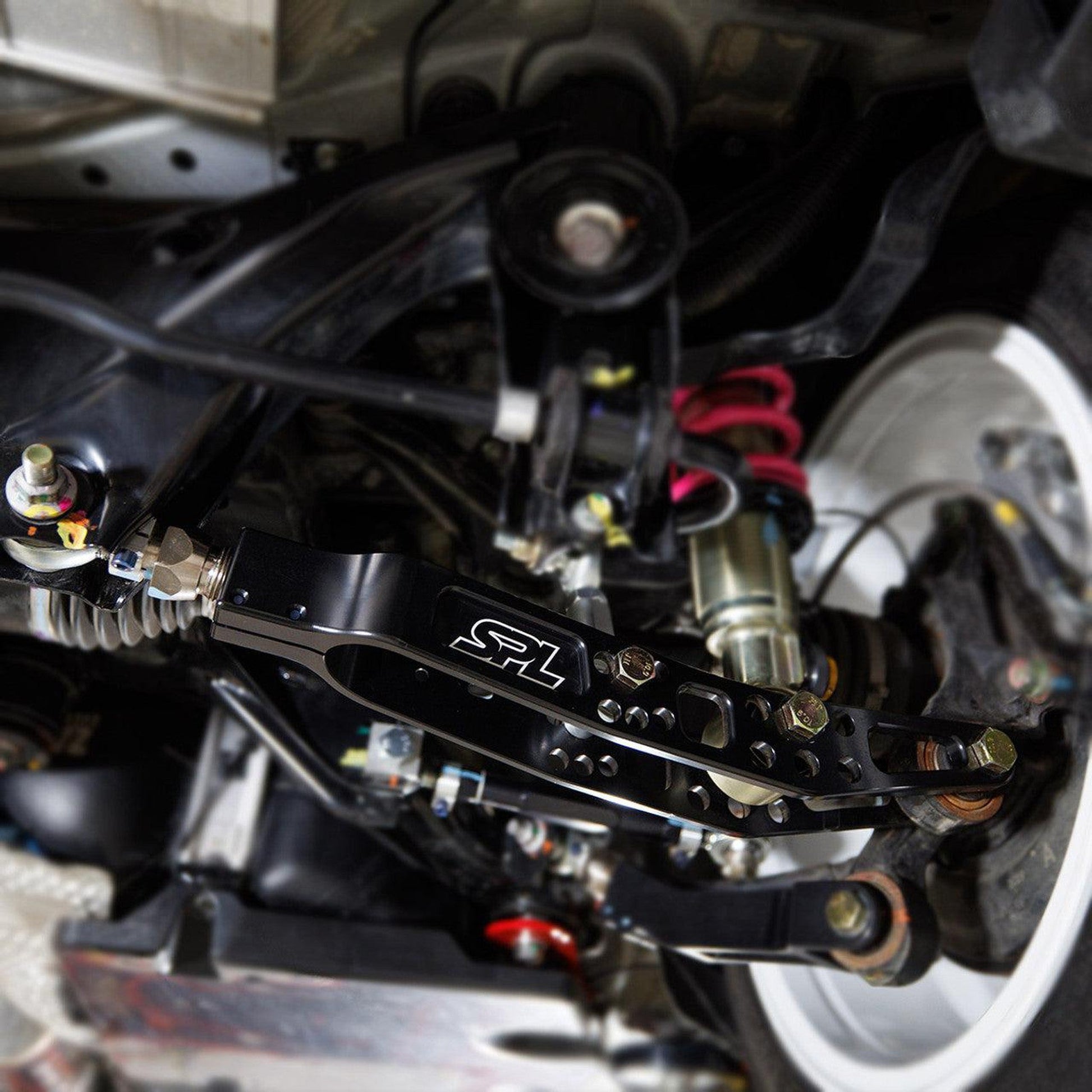

SPL adjustable Rear Lower Camber Arms (RLL) for the GR86/BRZ/WRX allow for adjustable camber, track, and installed motion ratios while significantly reducing the unwanted dynamic alignment change and binding that occurs with rubber or polyurethane bushings. The lower arm also handles the forces transmitted through the springs, shocks, and sway bar. By increasing the strength (rigidity) of the arm and using a spherical the rear suspension will have improved response, better lateral grip, and provide clearer feedback to the driver.

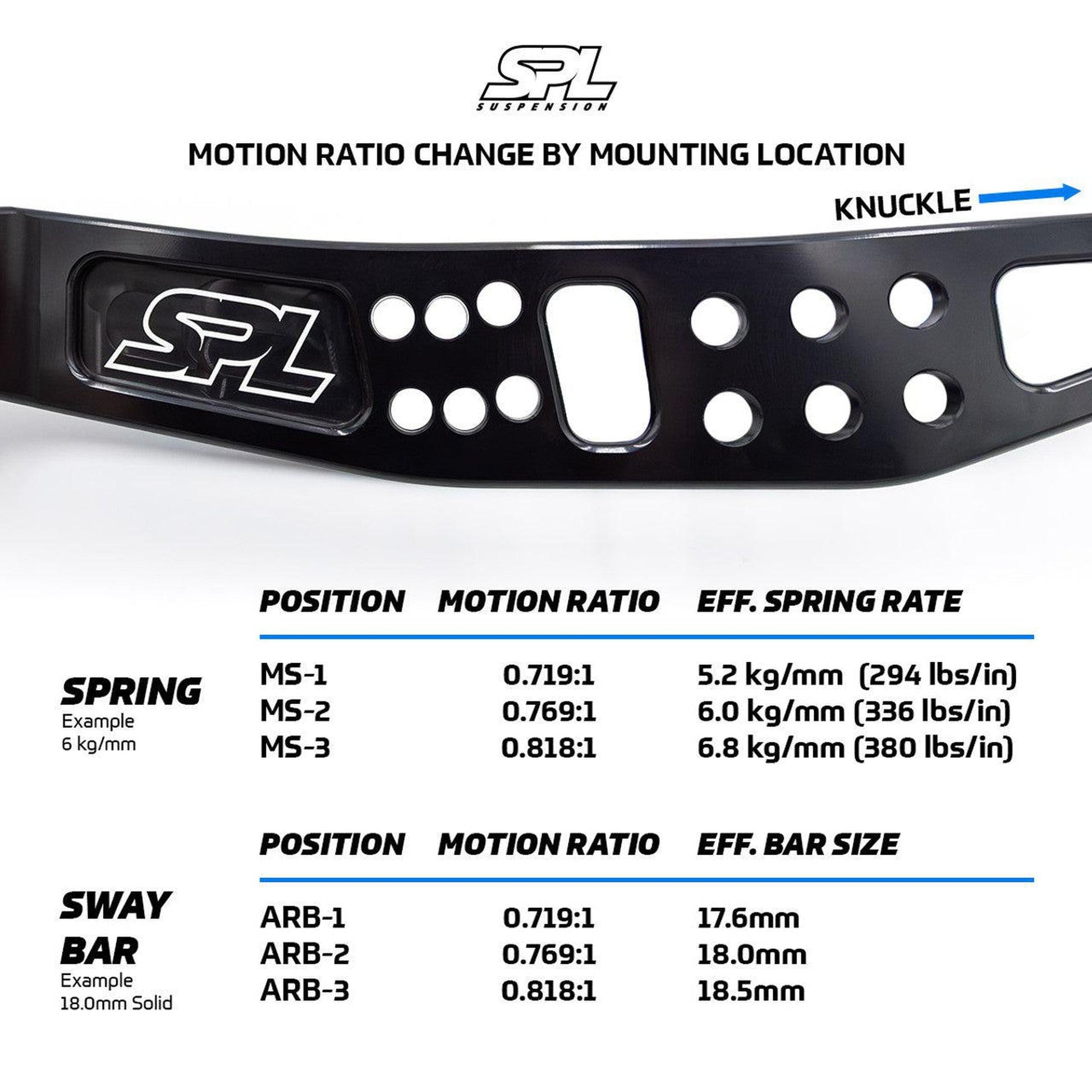

Adjustable Motion Ratios

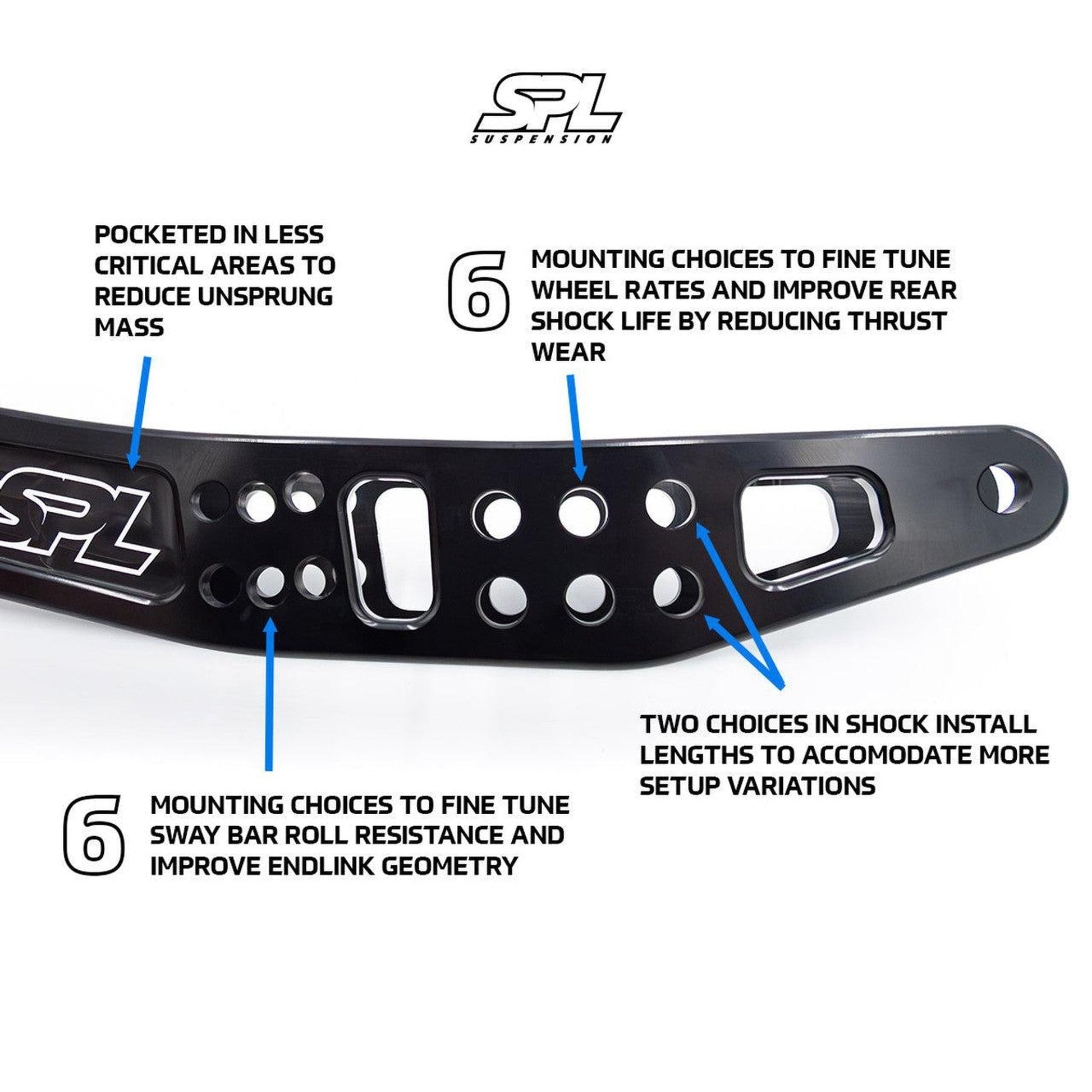

The three position mounting holes for the sway bar endlinks and shock mount allow you to adjust the mounting points to prevent endlink binding and quickly adjust motion ratios to change spring and sway bar effectiveness. Simply put, it's like having adjustable spring rates without a spring replacement. For example, a 6.0 kg/mm (336 lbs/in) main spring could act as a 6.8 (380 lbs/in), 6.0, or 5.2 kg/mm (294 lbs/in) spring, giving +/- 13% of adjustability. Likewise the sway bar endlink can be installed to act like a 0.5mm larger or smaller bar, so an 18mm bar would act like an 18.5mm, 18.0mm, or 17.5mm bar depending on setup (endlink geometry permitting).

Unrivaled Adjustability Range

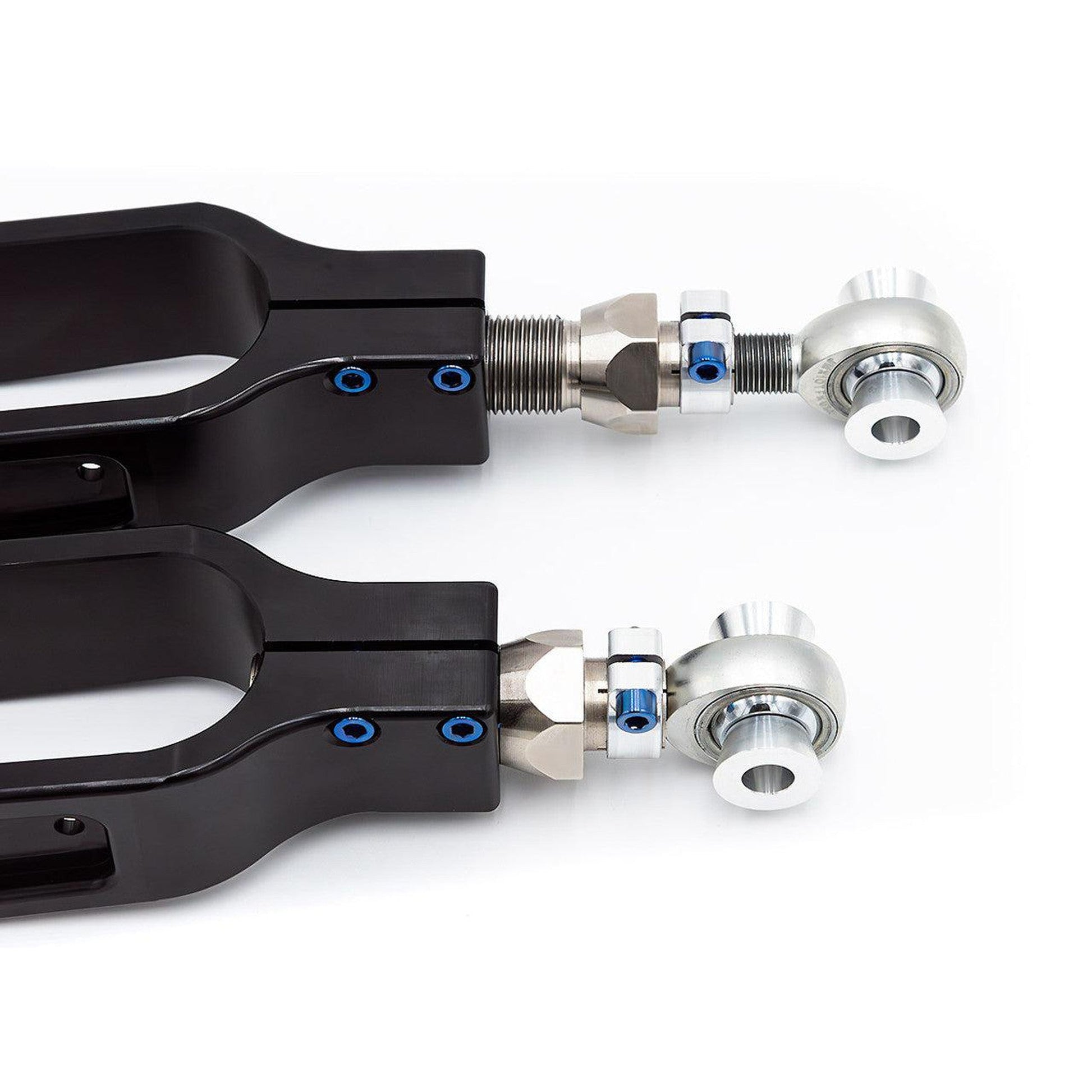

The large-diameter chromoly double adjuster and 5/8" (15.8mm) rod end allows for up to 1.375" (35mm) of total length adjustment, a 50% increase compared to many other options on the market.

Benefits

• Large Range of Camber and Motion Ratio Adjustability
• Lightweight: 3.57 lbs (1.62 kg) per Arm (17% Lighter than OEM)
• Eliminates Camber Loss to Bushing Deflection
• Improves Suspension Response and Driving Feel
• Easier, On-Car Adjustment + No Jam Nuts
• Self-Cleaning, US Made, PTFE-Lined FK Bearings

Materials

• 6061-T6 Aluminum Arms (Anodized Black)
• 6061-T6 Aluminum Spacers and 360º Clamps
• 4130 Chromoly Steel Double Adjuster (Electroless Nickel Plated)
• Ti-6Al-4V Titanium 1/4-20 Socket Head Allen Screws (Anodized Blue)

Replaces OEM Part Numbers

This is a list of known OEM part numbers. OEMs constantly make changes to part numbers due to part updates, suppliers, etc so this may not be a complete list.

Toyota
SU003-08417
SU003-04490

Subaru
20250-AL011
20250-FG042
20250-AJ040
20250-CA010
