RS-R 22-23 BRZ | ZD8 Sports-i Club Racer Coilover Kit | XNSPF069MP

RS-R 2022-2023 Subaru BRZ (ZD8) Sports-i Club Racer Coilover Kit

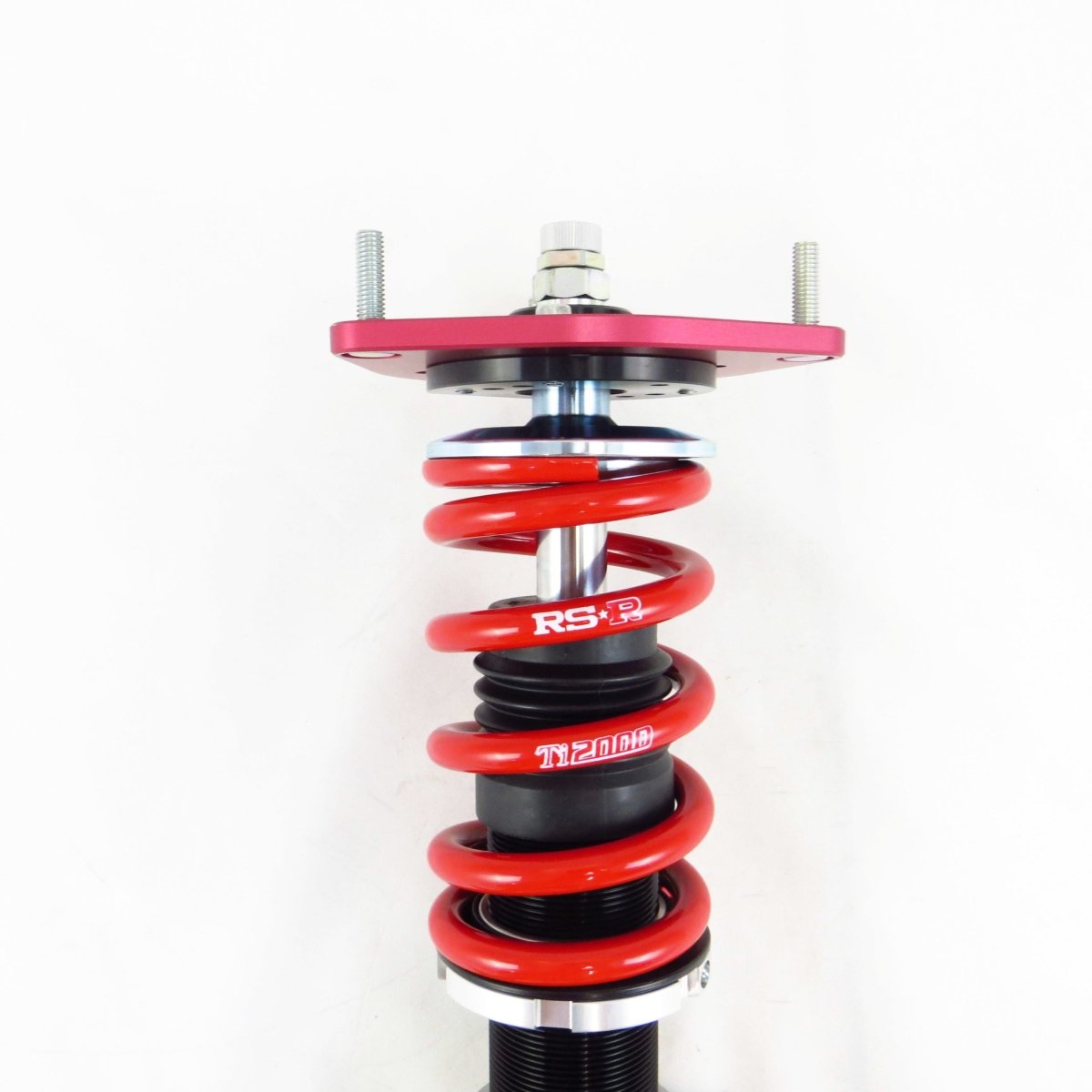

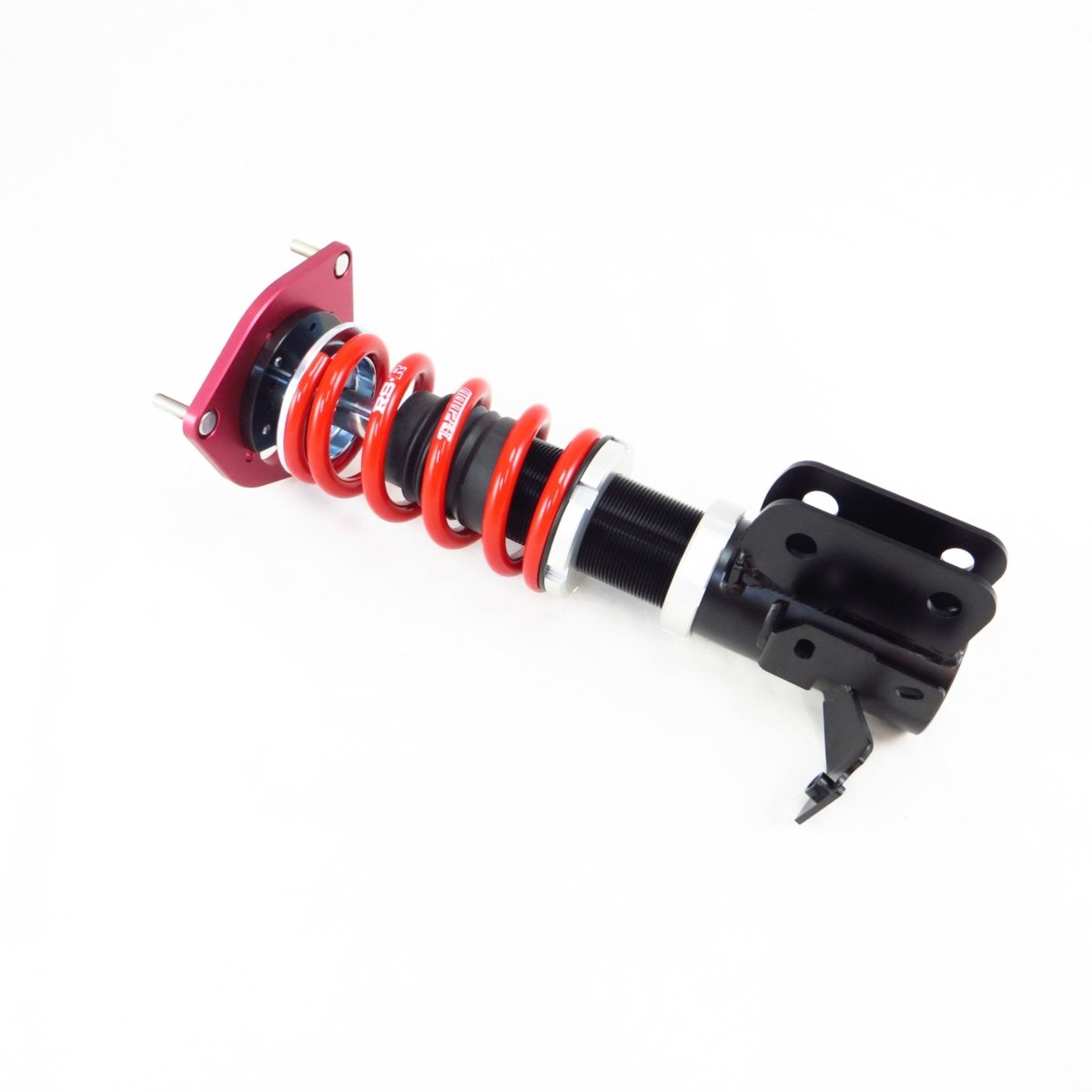

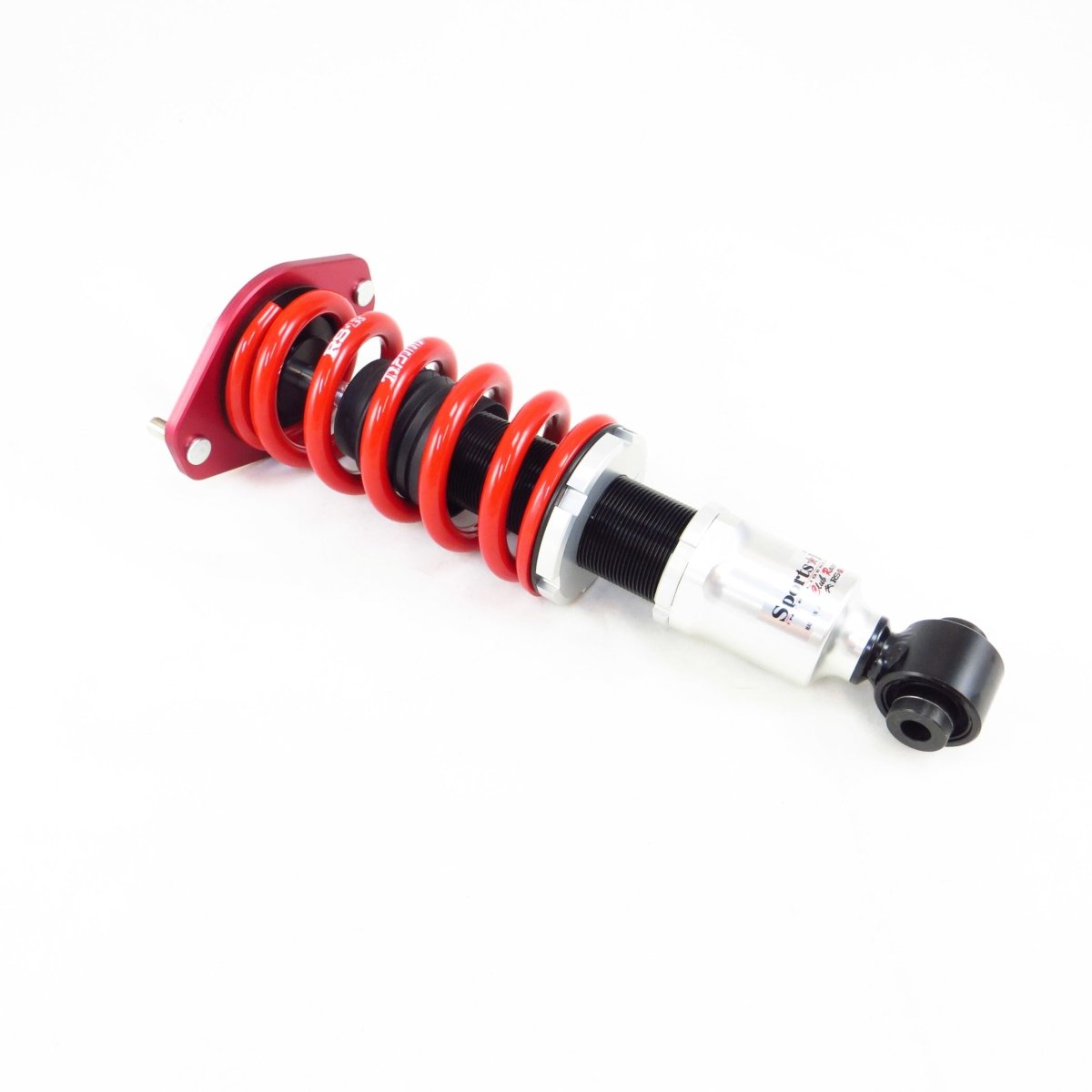

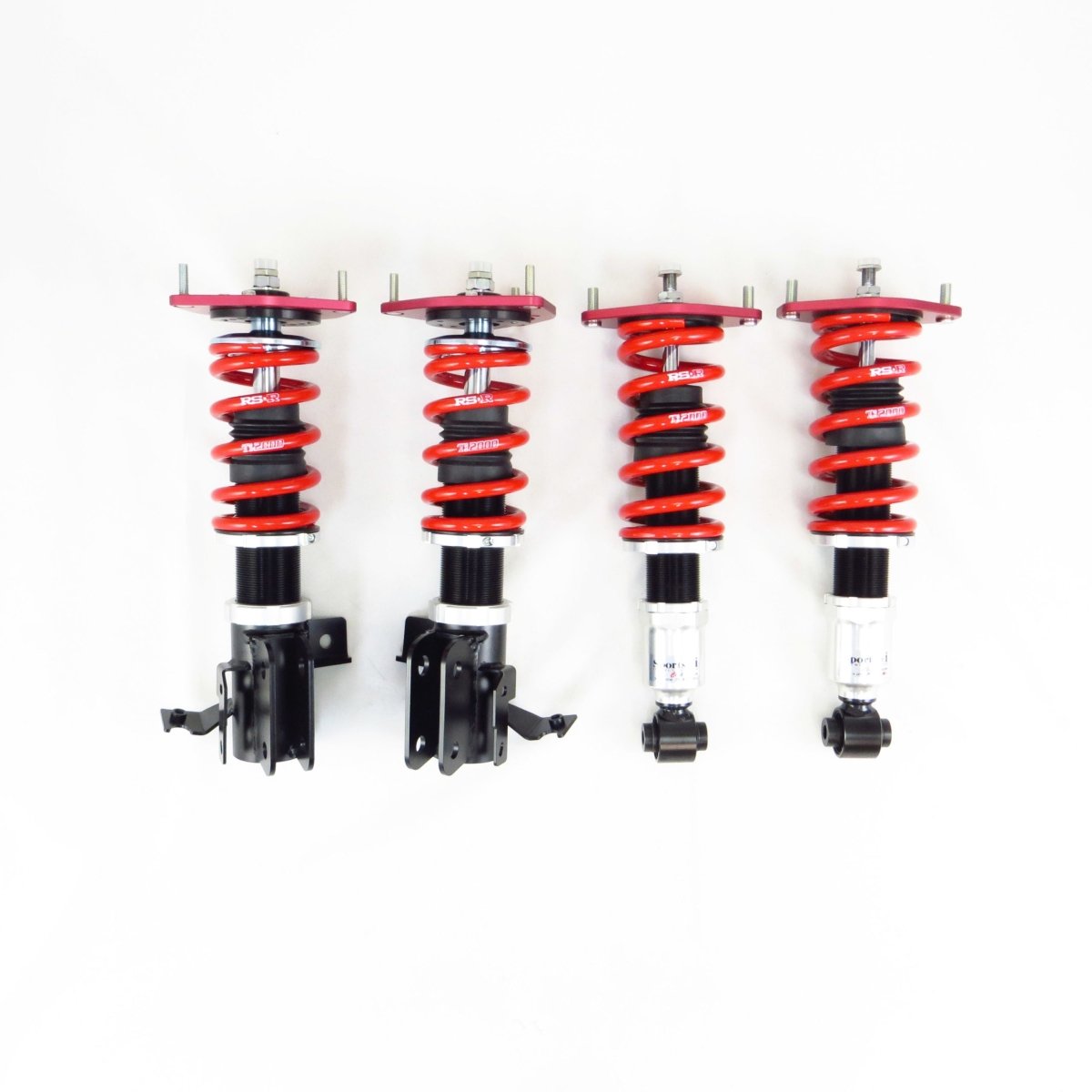

Here, you are looking at the RS-R Suspension Sports-I Clubracer Coilover Kit for your 2022-2023 BRZ.

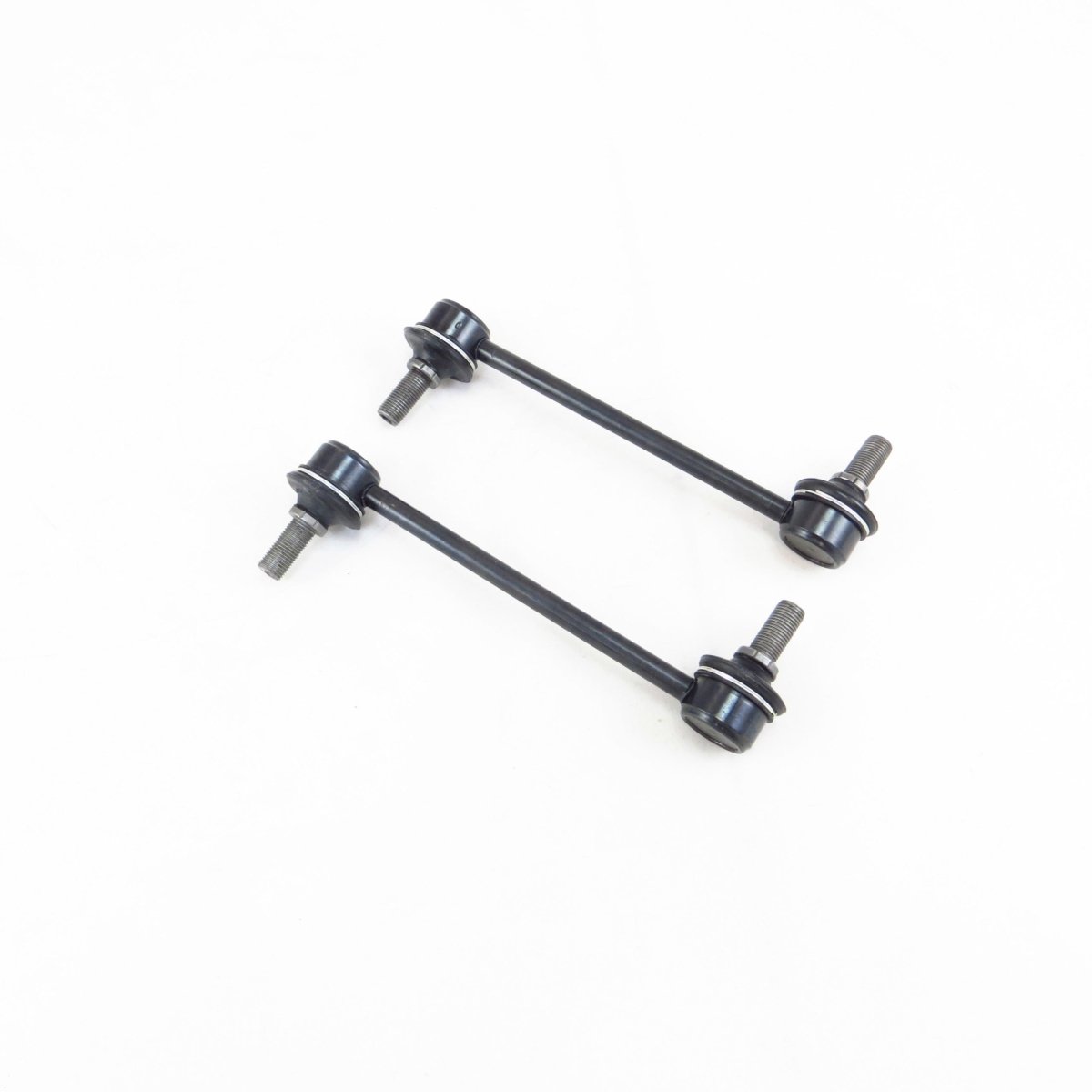

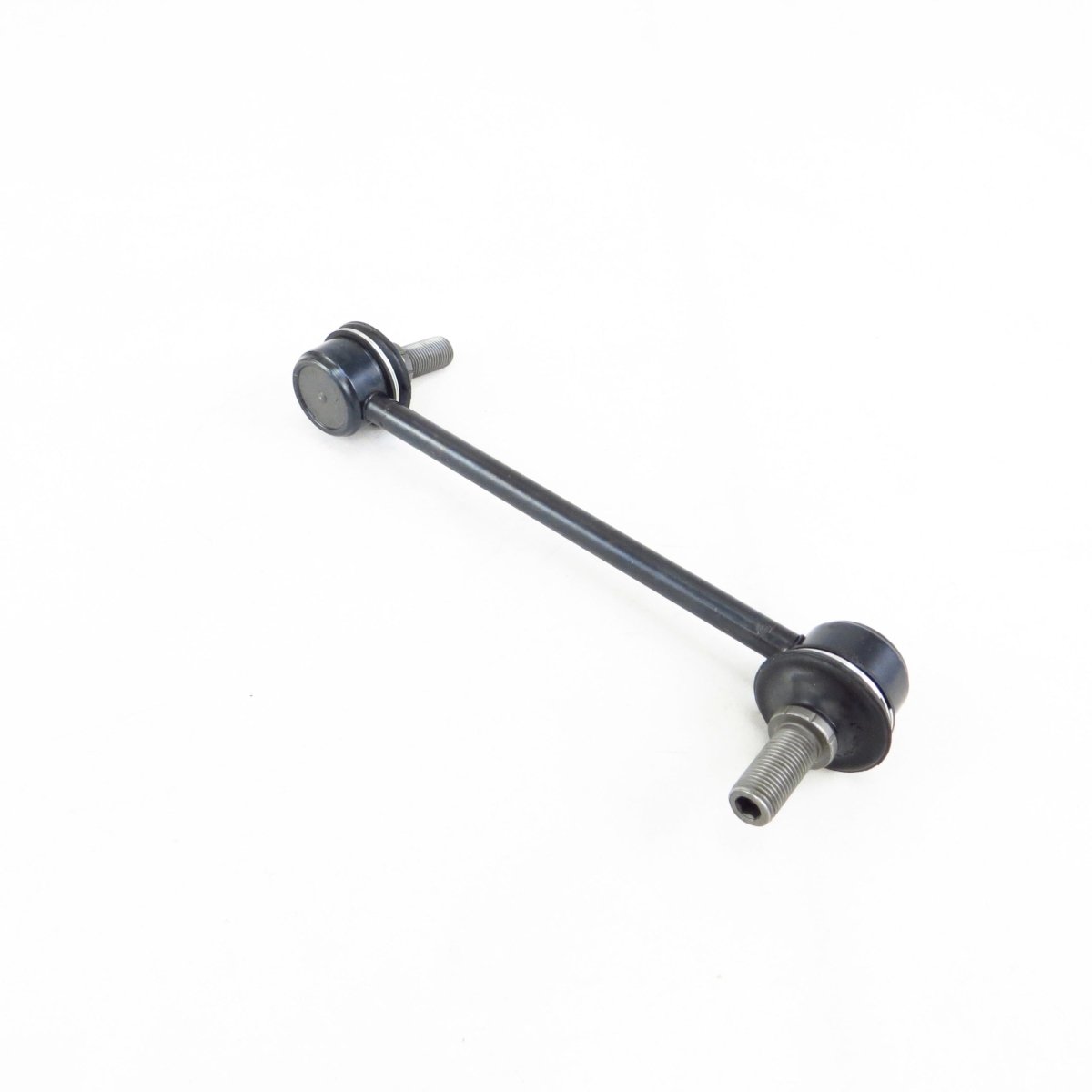

The Club racer spec is for those of you looking to take it a step further than the standard Sports-I, featuring a wider adjustment range, camber adjustable front top hats, upgraded end links, and stiffer springs.

The Sports-I coilover was designed for spirited weekend drives and light track use. With this coilover, you do not have to sacrifice daily driving comfort or performance. Designed with the performance enthusiast in mind, the RS-R Sports-I Coilover system provides a comfortable ride for everyday use, yet is sufficient enough for those effervescent track days.

Since these are a street-focused coilover, RS-R has designed these to be comfortable under any setting. Why spend all day at the track dialing in your suspension when you should be on the track enjoying the experience? Damper and camber adjustments should not be a definitive factor, nor should you spend all day adjusting your suspension settings at the track. These were designed to be a rather set-it-and-forget-it system, drive to the track, on the track, and drive home in comfort. Enjoy driving again with the RS-R Sports-I coilovers.

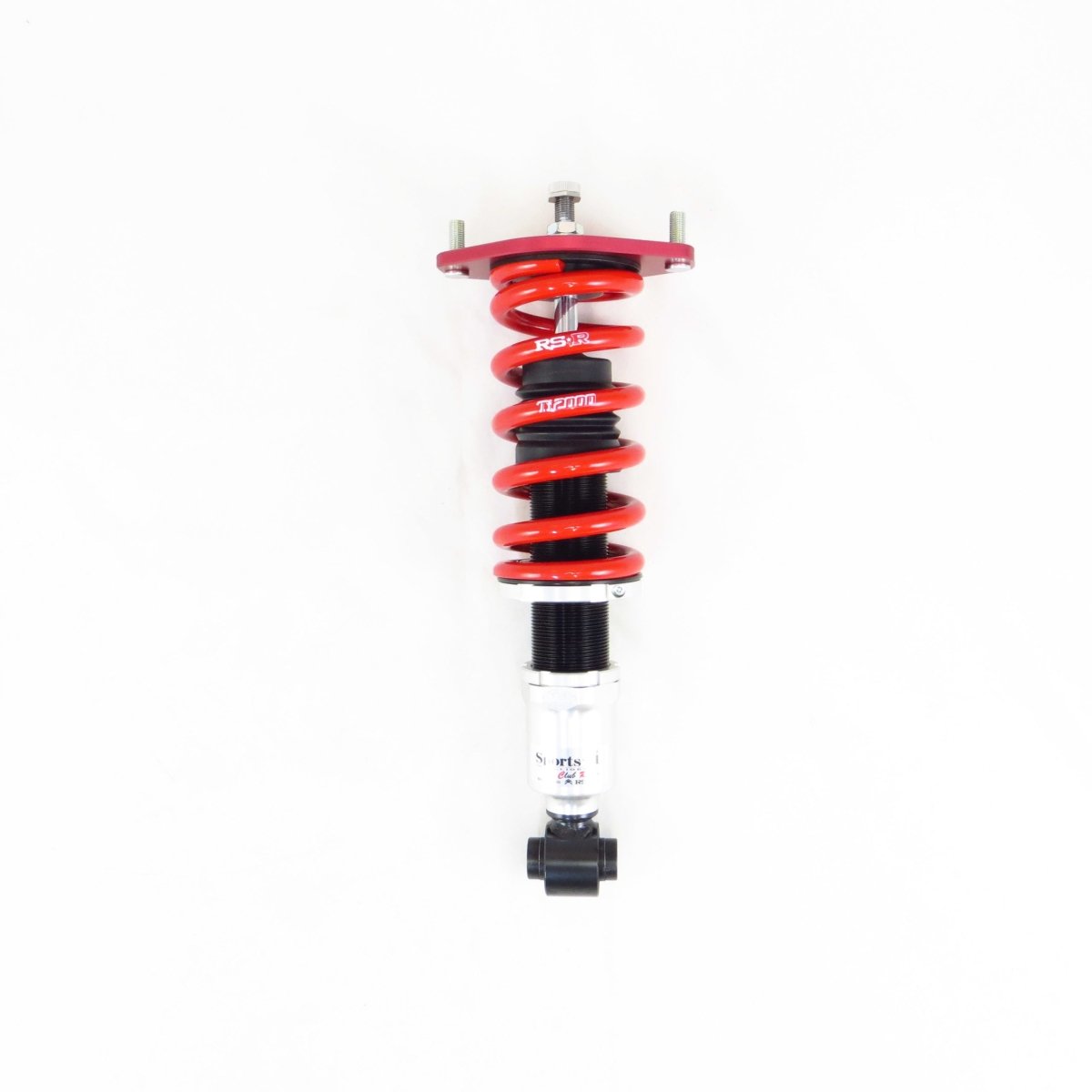

The RS-R coil overs are Monotube hand-assembled systems specifically designed to improve ride quality, performance, and comfort. They feature a wide variety of key features.

Laser-cut upper mounts

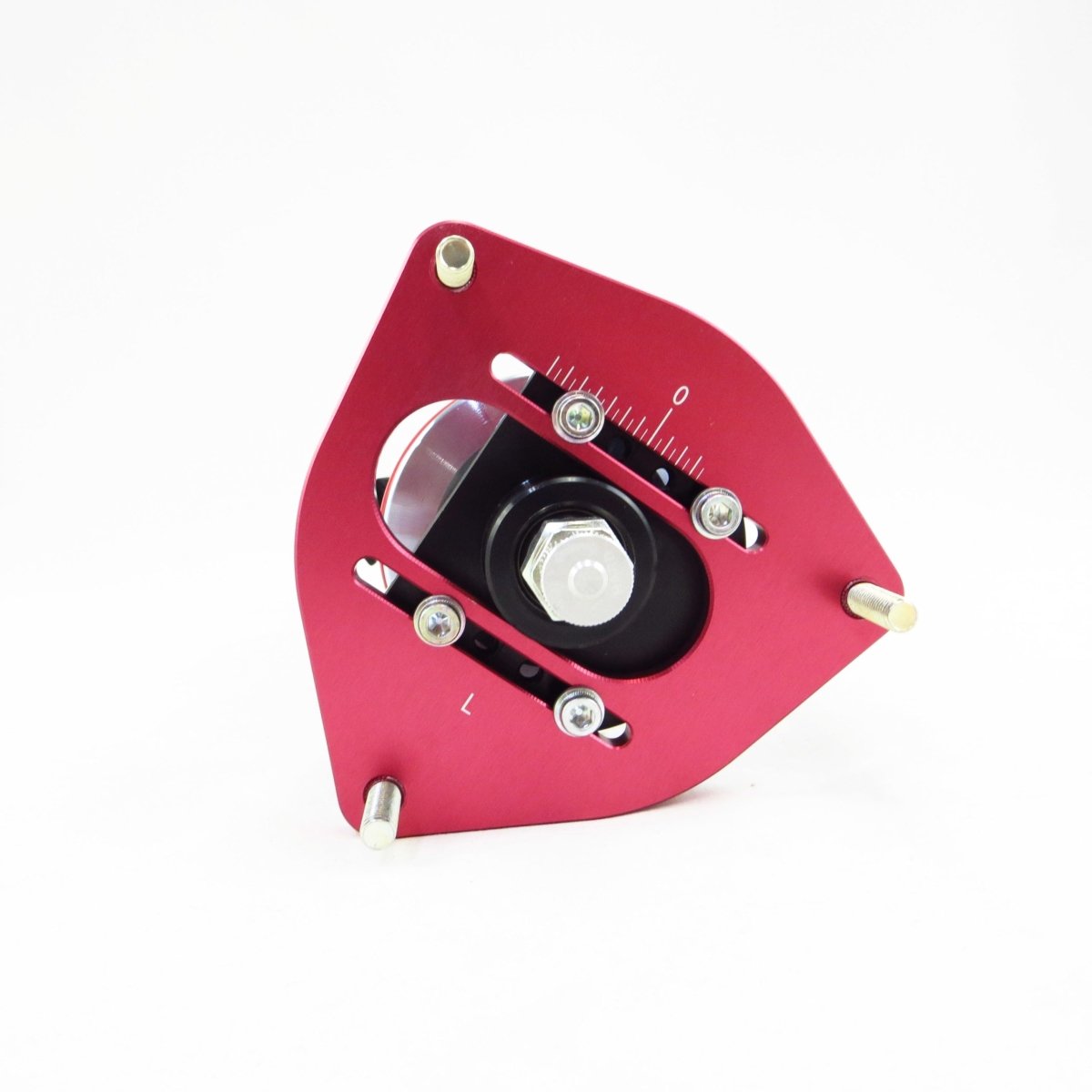

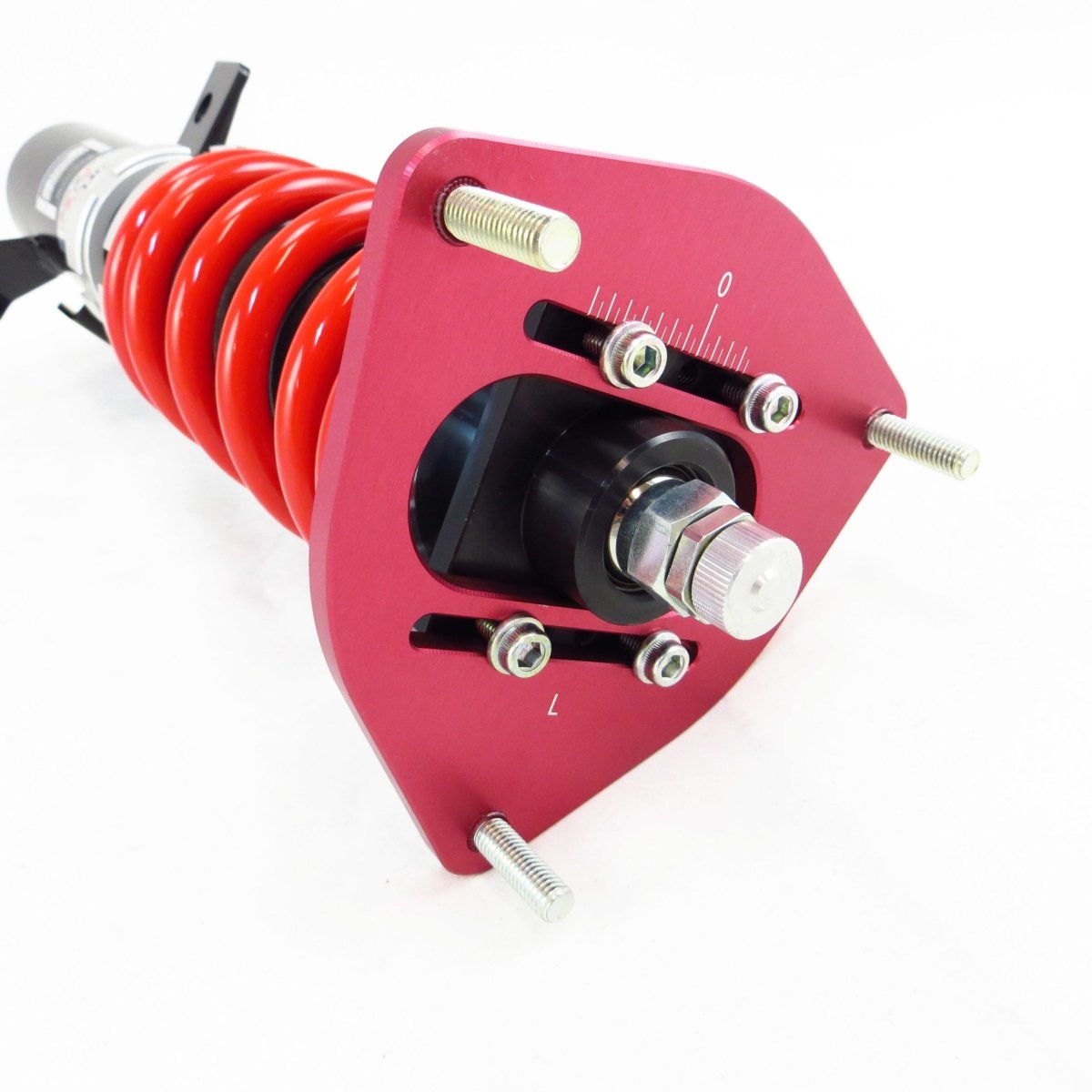

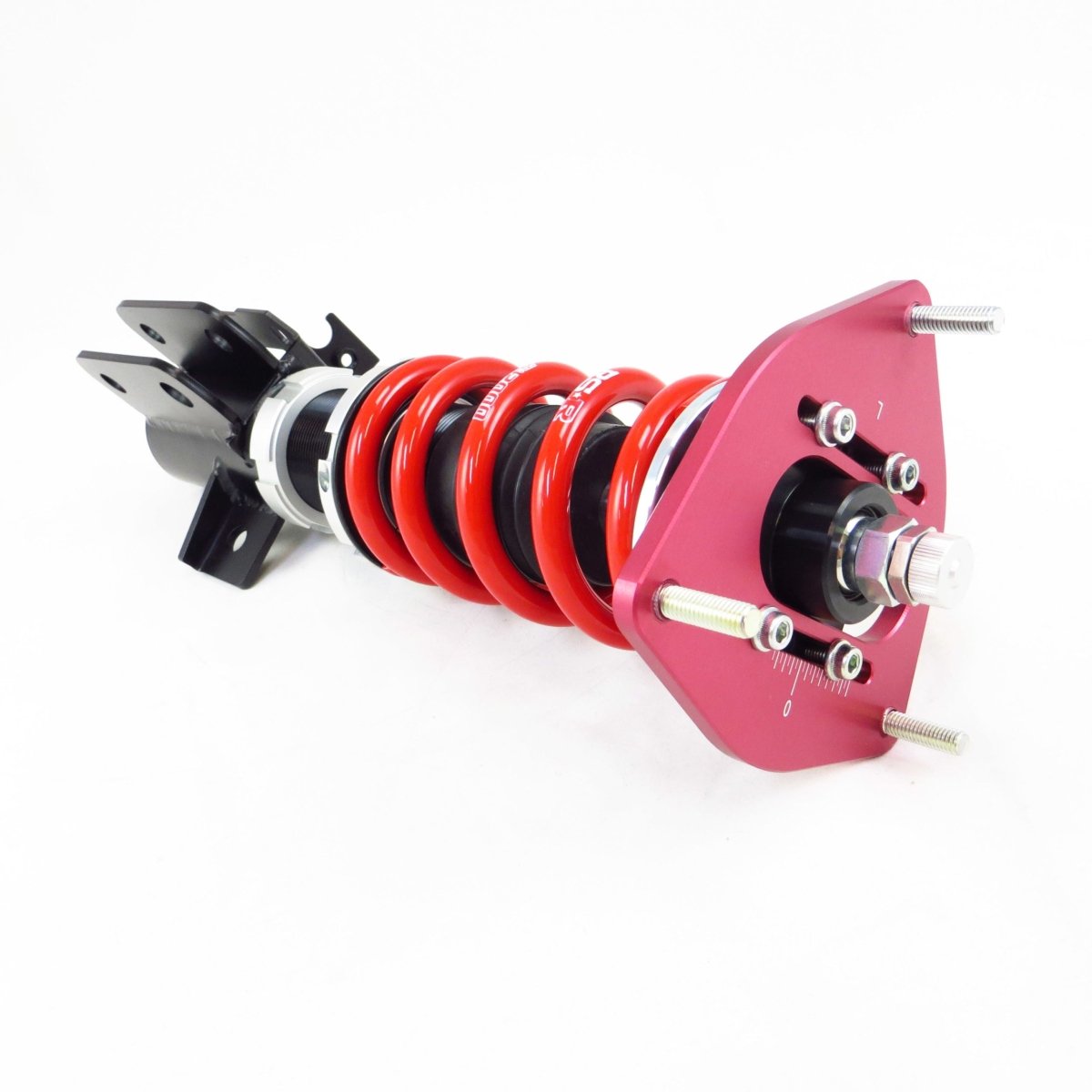

Camber Adjustable top Hats

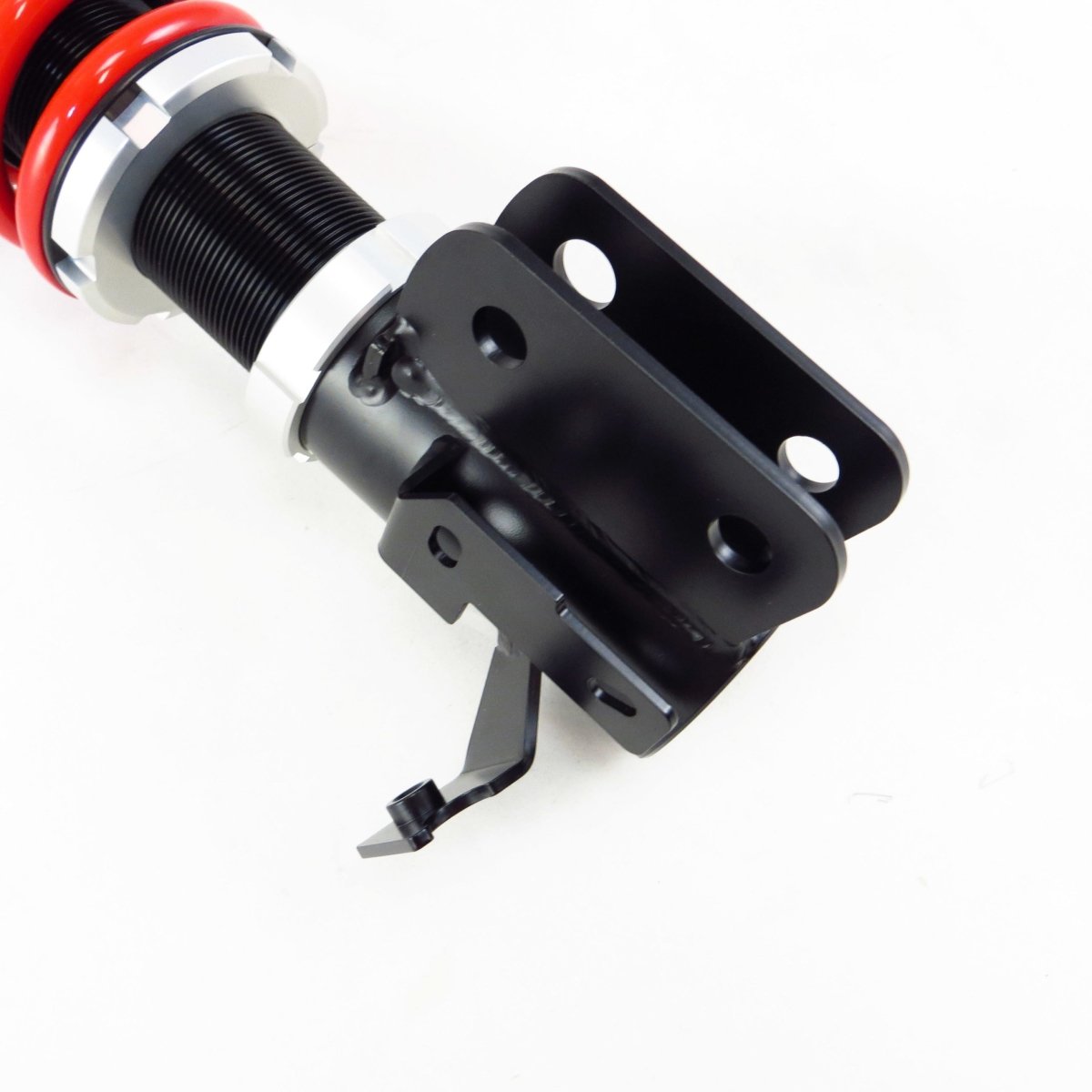

Hand-welded lower brackets
Vehicle specific valving
Urethane bushing instead of bearing to reduce excessive vibrations from everyday driving,&nbspas well as minimize noises from suspension movements.
Assembled by hand to ensure quality and detail.
Roller bearings to eliminate spring twist noise.
Rubber padding is utilized to help eliminate potential noise from suspension movements.
36-way adjustable dampers to tune the shock's compression and rebound to each individual's needs for almost any driving condition.
Preset Approximate Height From RS-R: Automatic
Front -15mm to -20mm (-0.6in to -0.8in)
Rear -15mm to -20mm (-0.6in to -0.8in)

Maximum Adjustment Range: Automatic
Front +15mm to -75mm (+0.6in to -3.0in)
Rear +35mm to -60mm (+1.4in to -2.4in)

Recommended Adjustments for Optimal Ride-ability: Automatic
Front +5mm to -40mm (+0.2in to -1.6in)
Rear +5mm to -40mm (+0.2in to -1.6in)

Preset Approximate Height From RS-R: 6 Speed Manual
Front -15mm to -20mm (-0.6in to -0.8in)
Rear -20mm to -25mm (-0.8in to -1.0in)

Maximum Adjustment Range: 6 Speed Manual
Front +15mm to -75mm (+0.6in to -3.0in)
Rear +35mm to -65mm (+1.4in to -2.6in)

Recommended Adjustments for Optimal Ride-ability: 6 Speed Manual
Front +5mm to -40mm (+0.2in to -1.6in)
Rear +5mm to -45mm (+0.2in to -1.8in)

Spring Rates:
Front 9.00kg/mm
Rear 10.0kg/mm

Dampers are 36 way adjustable in the front and 24 way adjustable in the rear.

This product is backed by RS-R's 1 Year / 12,000 mile warranty from the day of purchase.
