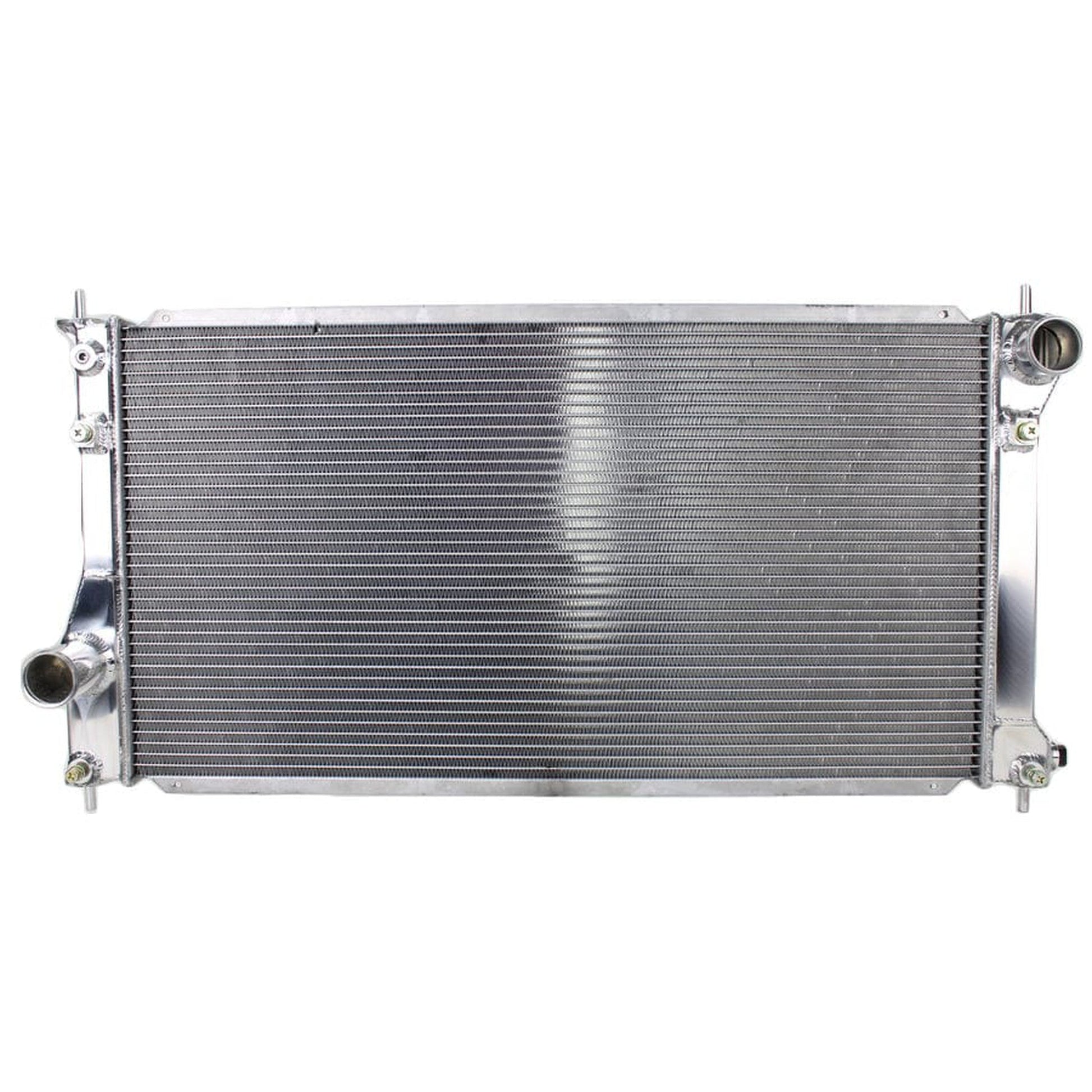

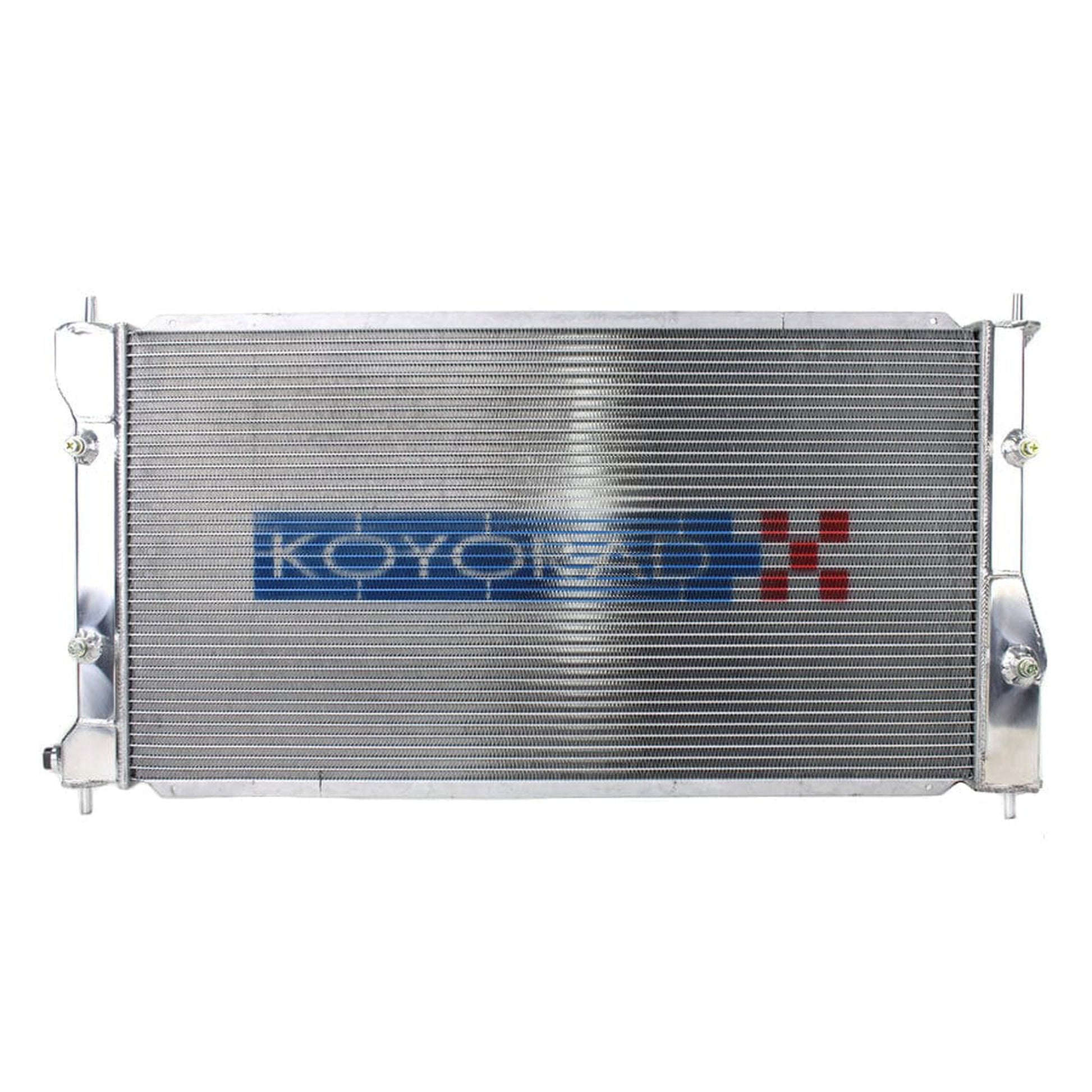

Koyo Radiator 13-16 Scion FR-S / 17-25 Toyota 86 / 2013-2025 Subaru BRZ | VH012664N

Fitment Information:

Scion FR-S 2013-2016
Subaru BRZ 2013-2019 ; 2022-2025
Toyota 86 2017-2020 ; 2022-2025
Note: Fits all BRZ/FRS/86 manual and automatic transmission models.

Specifications:
Full aluminum radiator

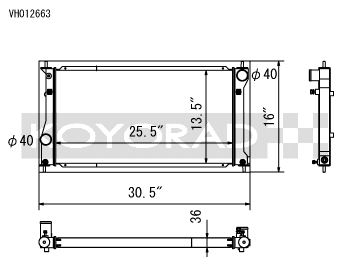

Core Depth: 1.417"
Core Height: 13.50"
Core Width: 25.50"
Item Weight: 11.8 pounds

• True plug and play installation; No engine modifications necessary and retains mounts for the stock fan shrouds and fans.
• Includes a 1/8 PT port, so a water temp sensor can be mounted directly into the radiator.
• Hand crafted heliarc welds for stronger enforcement along aluminum connections.
• All Koyorad Hyper V-Series All Aluminum Radiators are Nocolok brazed. (What does that mean? Learn more here: The NOCOLOK® Flux Brazing Process)
• Developed specifically for vehicles which see extreme heat, are limited in space, and where the factory inlet/outlet locations eliminate the option for a proper N-FLO design.
• The Hyper V Series radiators have a specially designed fin and tube pitch which significantly increased its surface area while still allowing for excellent air circulation through the radiator.
