GReddy Air Intake Snorkel for Factory Air Box Toyota GR86 / Subaru BRZ 22-25 | 12515002

Product Fitment:

2022-2025 Subaru BRZ

2022-2025 Toyota GR86

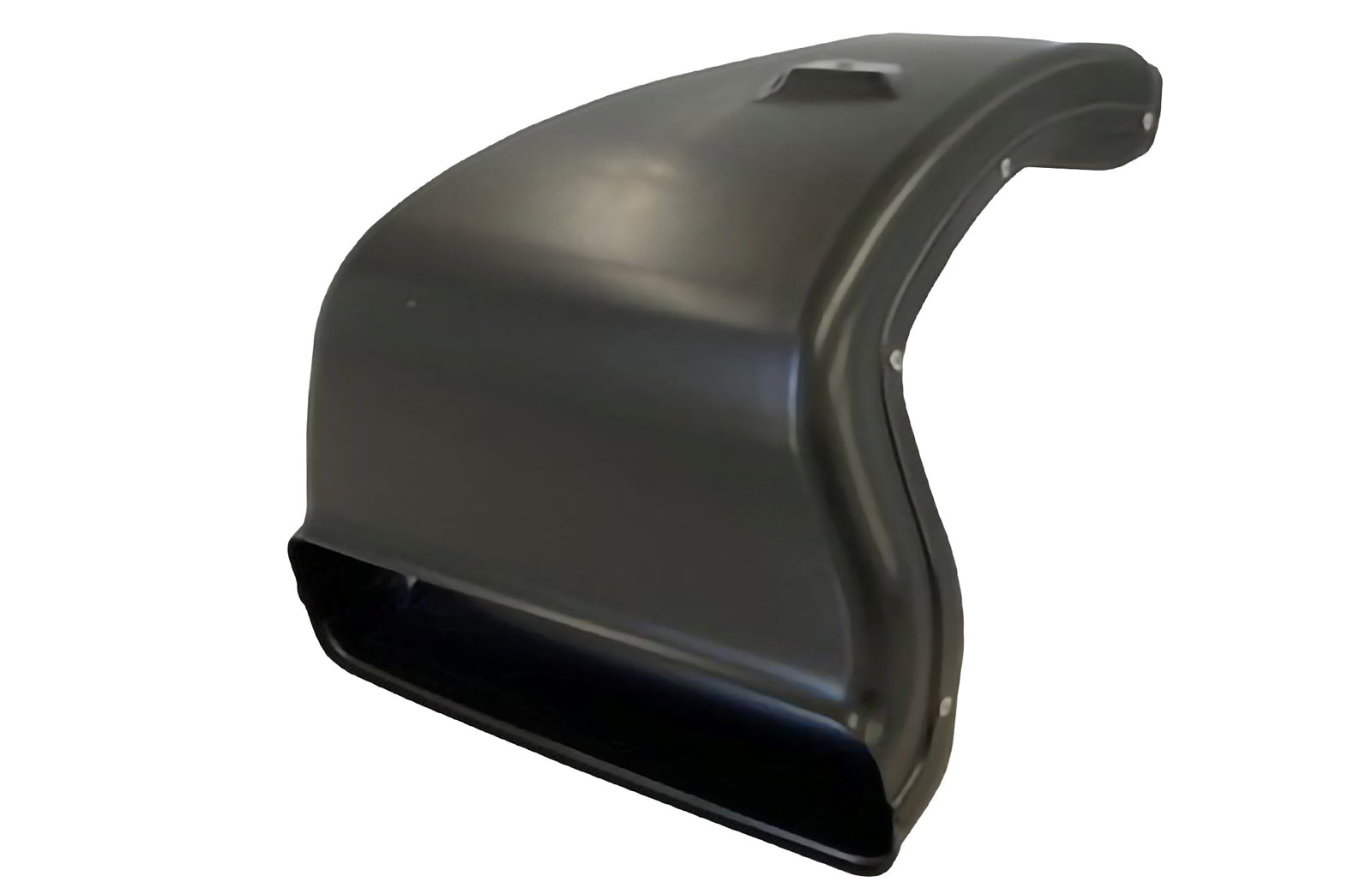

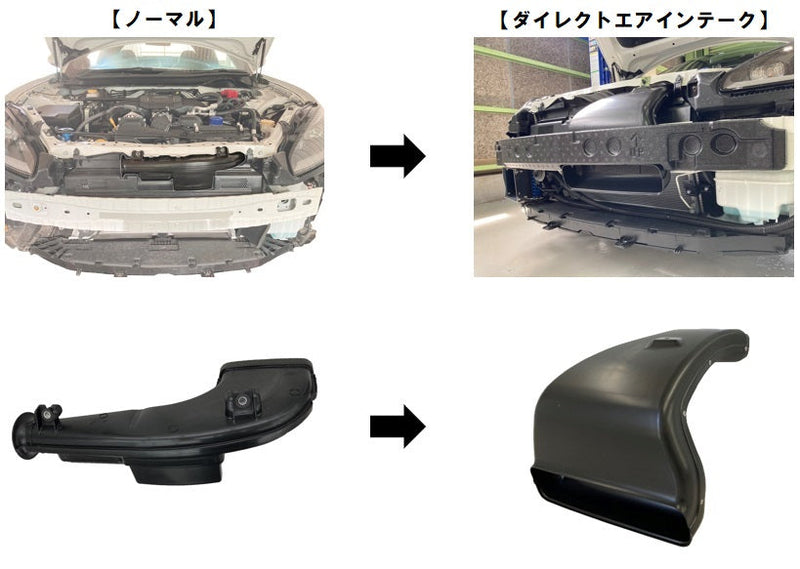

This Direct Air Intake Duct is engineered to replace the restrictive stock intake duct hidden behind the front bumper on your GR86 or BRZ. Constructed from vacuum-formed polypropylene (PP), it is approximately 300g lighter than traditional FRP alternatives. The design relocates the intake opening to the radiator grille area, significantly improving airflow to the air cleaner by channeling fresh, high-pressure air directly from the front of the vehicle.

Highlights:

• Direct fit replacement for factory intake duct

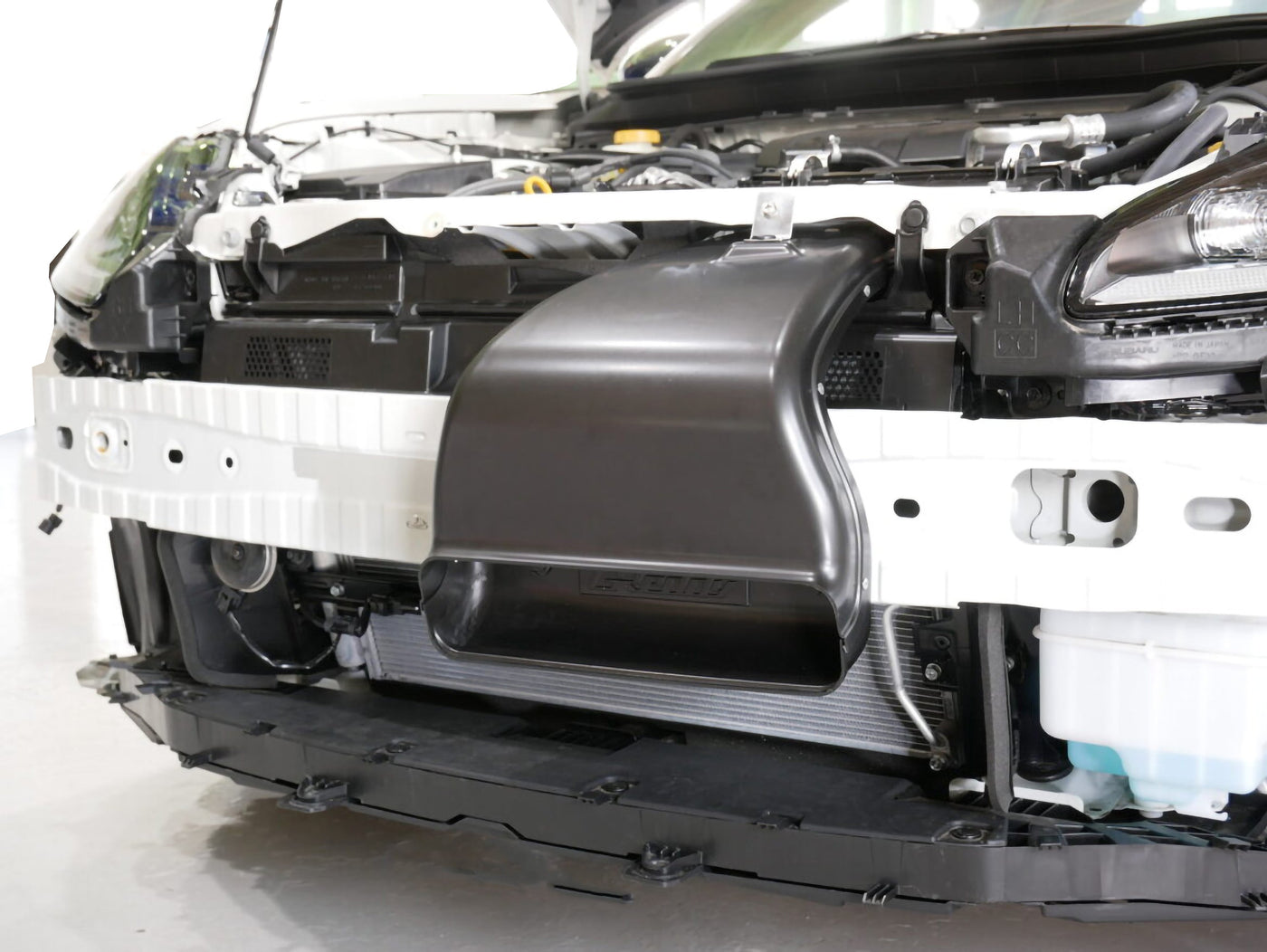

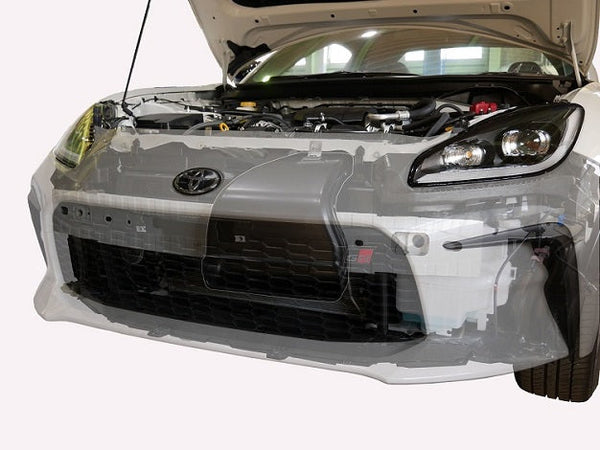

• Relocates intake port to the front grille for improved airflow

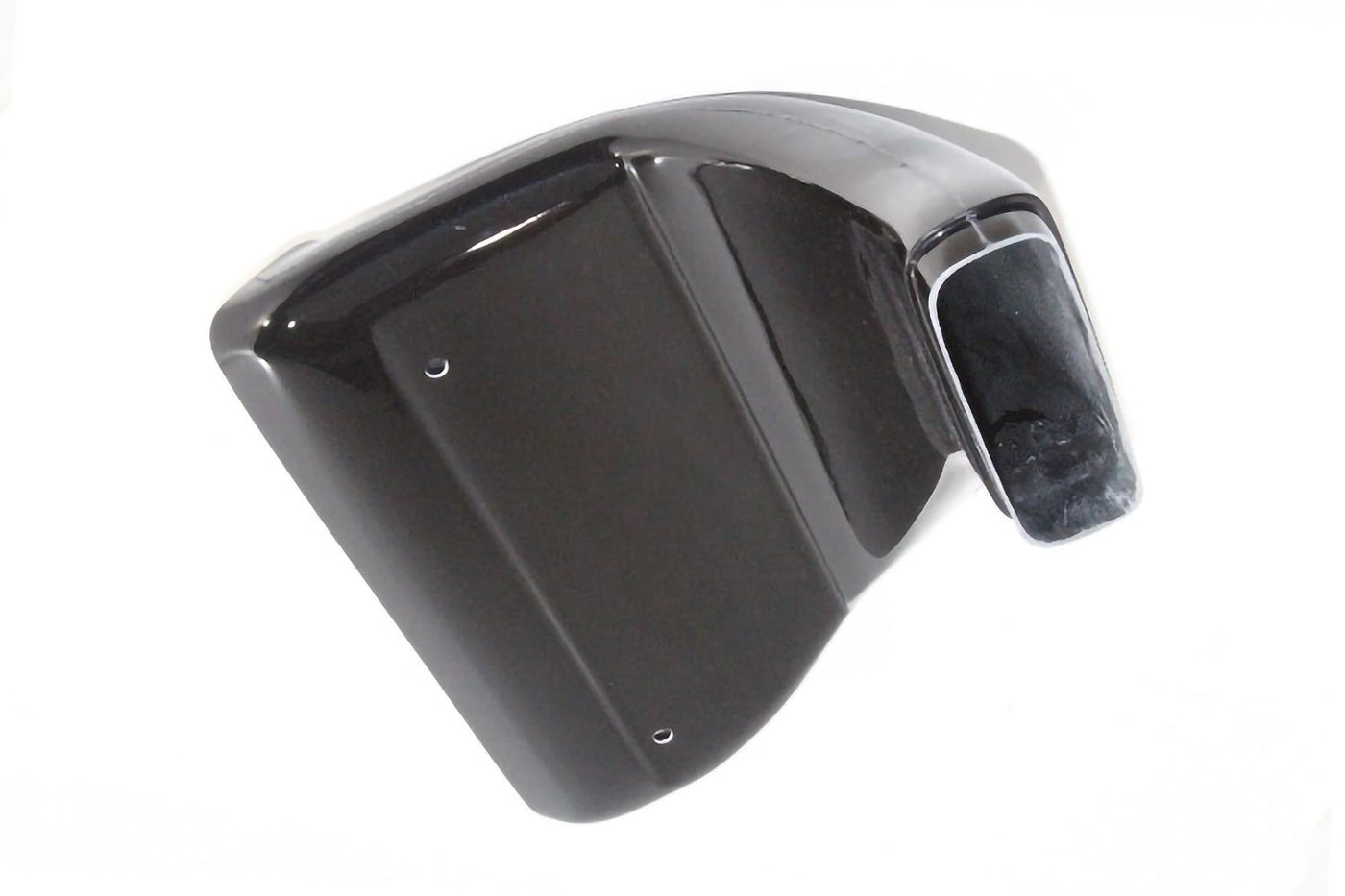

• Constructed from lightweight polypropylene (300g lighter than FRP version)

• Compatible with OEM air cleaner box

• Ideal for track days, spirited driving, or improved intake efficiency

Specifications:

• Material: Vacuum-formed polypropylene (PP)

• Requires cutting/modification to bumper reinforcement and energy absorber (Styrofoam)

• Installation requires removal of the front bumper and minor fabrication

Installation Notes:

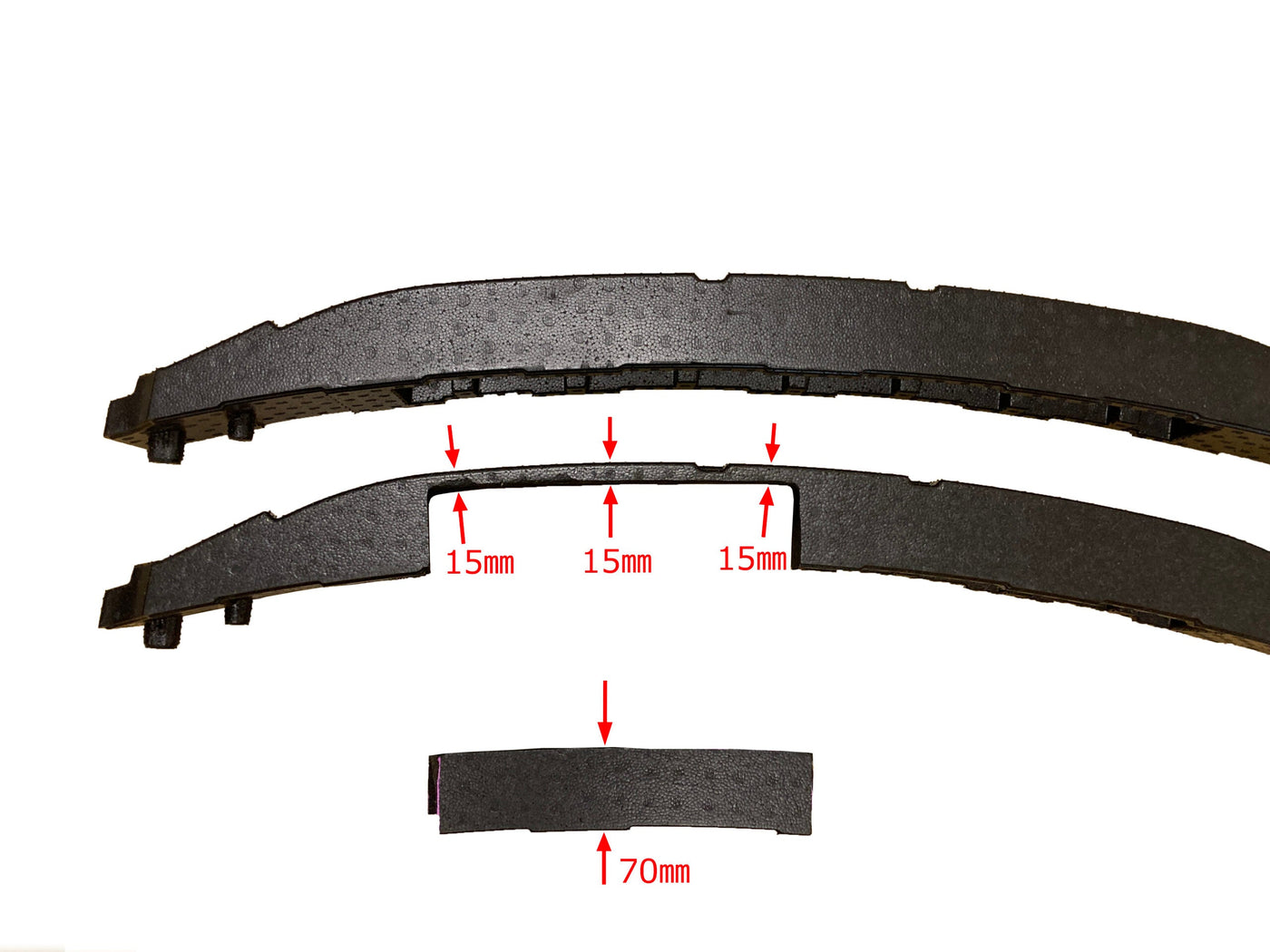

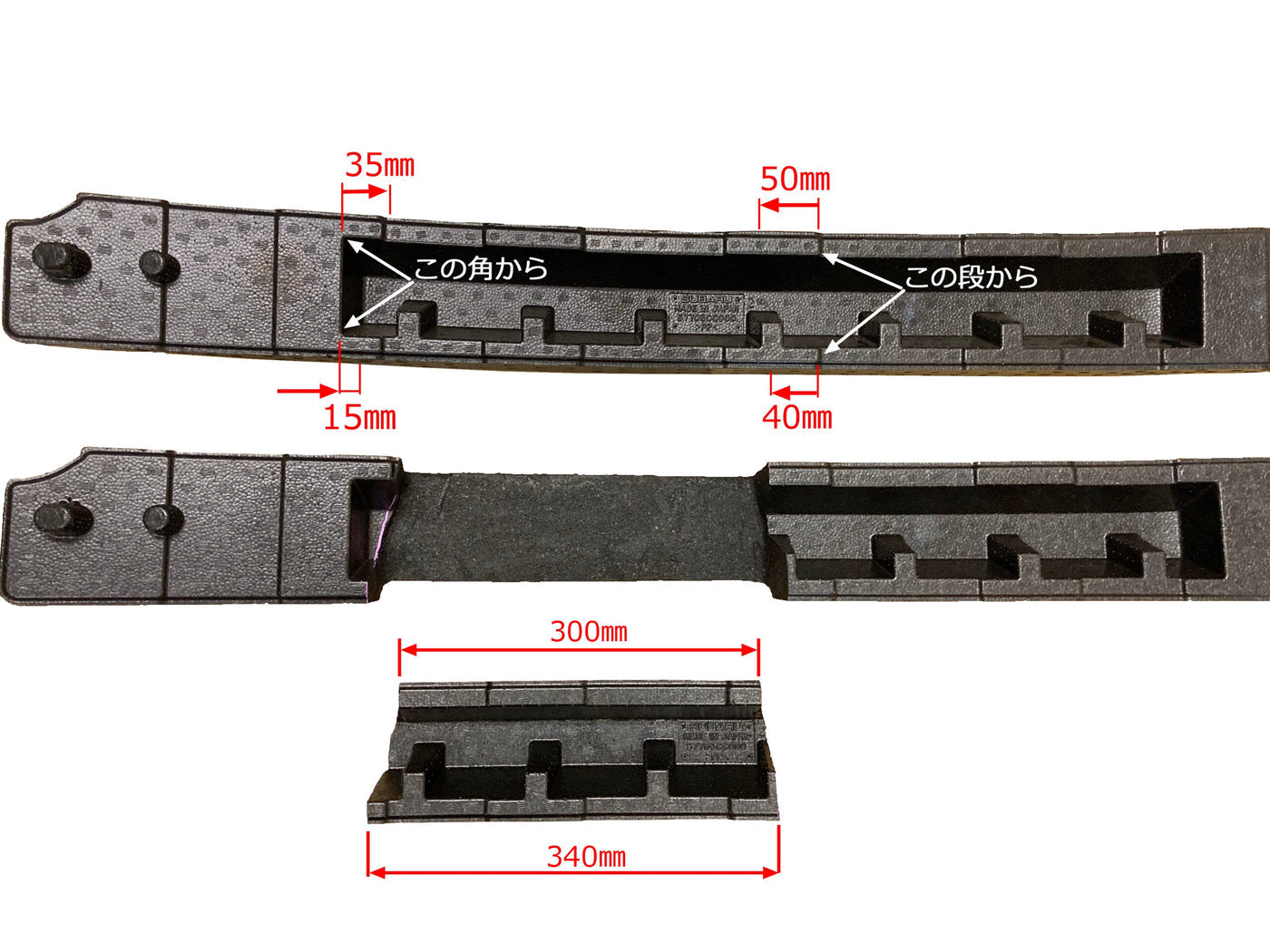

To install this duct, you’ll need to remove the front bumper, cut the energy absorber (Styrofoam), and perform minor drilling/modification to the reinforcement bracket. A reference cutting diagram is included, though final fitment should be refined on the vehicle. Recommended tools include an air saw, rotary tool, or fine-tooth cutter.

Why Choose This Duct?

Optimizing intake airflow is critical for consistent engine performance, especially under load or in motorsport conditions. By drawing cooler, higher-pressure air directly from the grille, this duct improves intake efficiency while reducing heat soak. It’s also significantly lighter than fiberglass alternatives, making it a practical upgrade for weight-conscious builds.
