Chase Bays Brake Line Relocation Dual Piston Brake Booster Delete Subaru WRX 02-07 | CB-WRX-DBBE

The Chase Bays Brake Line Relocation Kit is engineered specifically for use with the Chase Bays Dual Piston Brake Booster Delete (BBE) paired with the 6:1 Pedal Ratio Adapter. This kit is ideal for enthusiasts looking to declutter the engine bay, remove factory ABS (if applicable), and upgrade to motorsport-level braking performance and reliability.

Note:

• This kit does not include the Brake Booster Delete or Adjustable Bias Valve.

• The Adjustable Bias Valve is included with the Brake Booster Delete kit, not this line kit.

• Caliper lines are also sold separately

Features:

• Chassis-Specific Fitment: Designed to adapt the Chase Bays Dual Piston BBE to your vehicle with the most efficient and clean routing possible.

• ABS Delete Friendly: Can be used with or without factory ABS. All lines are designed to bypass or replace the ABS system entirely (where applicable).

• Premium Materials Throughout:

  • -3AN Stainless Steel Braided Brake Lines

  • Teflon PTFE Inner Liner for maximum durability and pressure resistance

  • Black PVC Outer Coating for abrasion and heat protection

  • Chase Bays Firesleeve included on lines routed near high-heat zones

• Motorsport-Grade Hose & Ends:

  • All hose and hose ends are sourced from BMRS (Brown and Miller Racing Solutions)—the same components trusted in NASCAR and IndyCar.

• Chase Bays Designed Fittings:

  • Custom, chassis-specific adapter fittings for a clean, secure, leak-free installation.

• Pressure Tested In-House: Each line is individually tested to ensure a leak-free, high-performance setup when installed correctly.

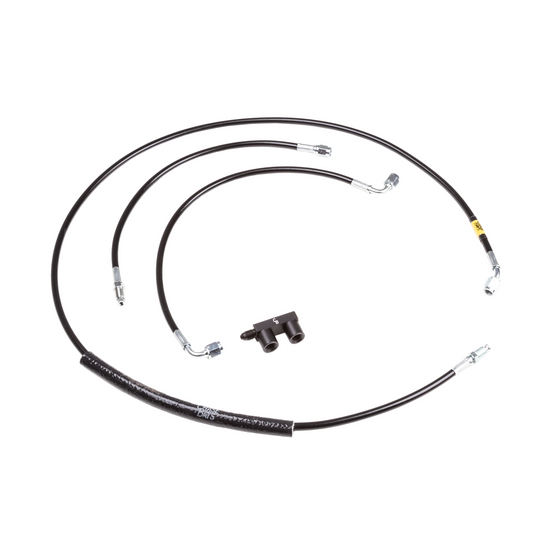

Included:

• Pre-cut, chassis-specific brake lines:

  • Front Right

  • Front Left

  • Rear

• Required adapter fittings for master cylinder and chassis-side connections

• Chase Bays Firesleeve (pre-installed or included depending on routing needs)

Fitment Notes:

• Does not include the Dual Piston Brake Booster Delete or Bias Valve

• Designed to work specifically with Chase Bays 6:1 Pedal Ratio BBE setup

• Replaces all factory engine bay brake lines up to the wheel well connections

• Does not include caliper lines—available separately

Installation Guidelines:

• Route lines per Chase Bays recommended paths: low on the firewall, behind steering column, under frame rails

• Always secure lines at least 4" away from manifolds, downpipes, and high-heat zones

• Firesleeve included for additional protection where needed
